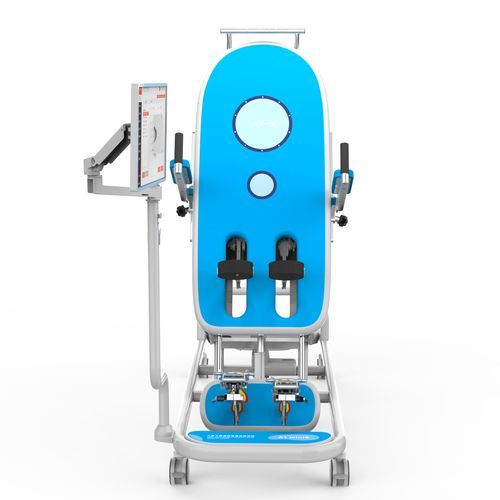

3 sections tilt table A1miniS

pediatricelectrictherapy

Product Introduction
The A1miniS Pediatric Lower Limb Feedback Training System is a robotic tilt-table solution designed for early neuromotor rehabilitation of children with lower-extremity motor dysfunction. The device combines upright weight-bearing positioning with passive cyclic stepping to promote physiological gait patterns, reduce pathological motor synergies and support cardiovascular and venous return benefits during repetitive training.

Clinical Indications

• Pediatric gait disturbance or motor impairment
• Pediatric cerebral palsy
• Multiple sclerosis with pediatric involvement
• Congenital limb malformation
• Muscle atrophy
• Hypokinesia and other motor disorders affecting ambulation

Short Description

• Model family / name: A1miniS
• Load capacity: ≤200 kg
• Stepping speed: adjustable, 1–80 steps/min
• Stepping angle: 0°–45°
• Bed upright (tilt) angle: 0°–80°
• Leg length adjustment range: 0–15 cm (motorized)
• Spasm sensitivity range: 20–60 Nm (adjustable)
• Spasm pause duration: 3–120 seconds (adjustable)

Functional Features

• Patient-centered ergonomic monolithic bed board to maximize comfort for pediatric patients
• Independent intelligent operation console with clinical assessment tools and automatic training report generation; supports passive and active‑passive hybrid modes
• Child-friendly design with cartoon-style casing, ambient lighting and gamified interfaces to reduce anxiety during therapy
• Motorized bed and automatic leg-length adjustment with memory and position recall
• Optimized physiological gait simulation to reproduce natural stepping kinematics for gait retraining
• Continuously variable tilt for diversified weight-bearing lower-extremity training
• Multi-functional foot pedals in soft eco-friendly silicone with anti-slip texture
• Spasm detection and safety module: real-time recognition of abnormal kinematics, automatic low-speed reverse to home, pause and reduced-speed resume; three sensitivity levels
• Real-time torque tracking with continuous dynamic torque curve visualization

Technical Specifications

• Model family / name: A1miniS
• Load capacity: ≤200 kg
• Stepping speed: 1–80 steps/min (adjustable)
• Stepping angle range: 0°–45°
• Bed tilt angle range: 0°–80°
• Leg length adjustment range: 0–15 cm (motorized, memory and recall)
• Spasm sensitivity range: 20–60 Nm (adjustable, three levels)
• Spasm pause duration: 3–120 s (adjustable)
• Operation modes: Passive; Active-passive hybrid
• Safety features: Real-time spasm detection with automatic reverse and reduced-velocity resume; torque monitoring with real-time curve visualization
• User interface: Independent intelligent display with integrated clinical assessment and automatic report generation
