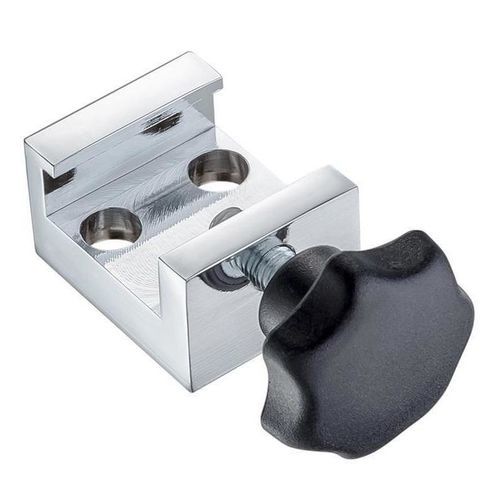

Rail holder 117-001

rail-mountedmetal

Product description
Universal rail clamp for mounting accessories on standard rails 25 x 10 mm according to DIN EN ISO 19054. Tool-free attachment; suitable for industrial and medical applications.

Product details

• Rail cross-section: 25 x 10 mm
• Ø holes: 2 x 5.5 mm
• Hole distance: 22 mm
• Width x Height: 35 x 45 mm
• Rail distance: 11.5 mm
• Max. payload: 45 kg
• Weight: approx. 0.3 kg
• Material: brass
• Surface: chrome-plated

Product types

• Intermediate product
• Medical device (CE marking and intended-use information on request)

Product advantages

• Mounting of various accessories on rails
• Tool-free assembly
• Fits 25 x 10 mm rails according to DIN EN ISO 19054

Technical specifications

• Article number: 117-001
• Rail cross-section: 25 x 10 mm
• Ø holes: 2 x 5.5 mm
• Hole distance: 22 mm
• Width x Height: 35 x 45 mm
• Rail distance: 11.5 mm
• Max. payload: 45 kg
• Weight: approx. 0.3 kg
• Material: brass
• Surface: chrome-plated
