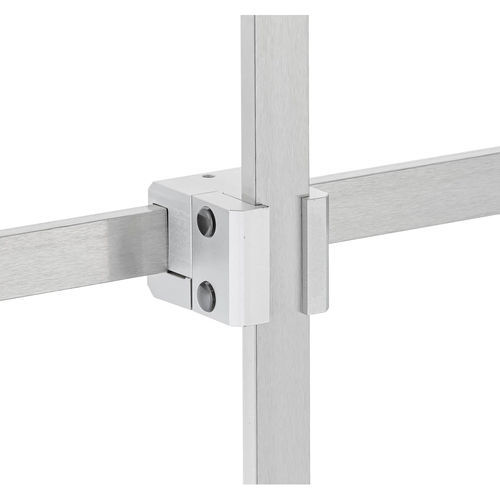

Rail holder 117-030

rail-mountedaluminum

Product name
Cross clamp LH 117-030

Product types

• Medical device
• Intermediate product

Product details
Rail cross-section: 25 x 10 mm
Clamp cross-section: 45 x 45 mm
Rail distance: 32 mm
Max. payload: 10 kg
Weight: approx. 0.25 kg
Material: aluminum
Surface: anodized

Product advantages

• Mounts a horizontal rail to a vertical rail (e.g. CSU)
• Compatible with 25 x 10 mm rails according to DIN EN ISO 19054
• Tool-free installation

Technical specifications

• Art-No.: 117-030
• Rail cross-section: 25 x 10 mm
• Clamp cross-section: 45 x 45 mm
• Rail distance: 32 mm
• Max. payload: 10 kg
• Weight: approx. 0.25 kg
• Material: aluminum
• Surface: anodized
