Rail holder 117-011
rail-mountedaluminum

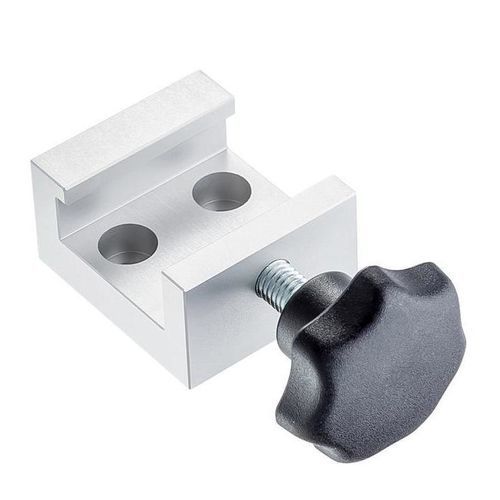

Rail holder - 117-011 - Guido Buschmeier Maschinenbau - rail-mounted / aluminum
Rail holder - 117-011 - Guido Buschmeier Maschinenbau - rail-mounted / aluminum
Add to favorites
Compare this product
Go to the Guido Buschmeier Maschinenbau website for more information

Characteristics

Product applications
for rails
Configuration
rail-mounted
Material
aluminum
Width

40 mm
(1.6 in)

Height

46 mm
(1.8 in)

Weight

0.1 kg
(0.2 lb)

Description

Product
Rail clamp for mounting accessories on 25 x 10 mm rails. Tool-free assembly. Art-No. 117-011.

Product types
  • Medical Device
  • Intermediate product


Product details
  • Rail cross-section: 25 x 10 mm
  • Ø holes: 2 x 5.5 mm
  • Hole distance: 22 mm
  • W x H: 40 x 46 mm
  • Rail distance: 11.5 mm
  • Max. payload: 45 kg
  • Weight: approx. 0.1 kg
  • Material: aluminum
  • Surface: anodized


Product advantages
  • Mounting various accessories on rails
  • Mountable without tools
  • Compatible with 25 x 10 mm rails according to DIN EN ISO 19054


Art-No.
117-011

Technical specifications
  • Rail cross-section: 25 x 10 mm
  • Ø holes: 2 x 5.5 mm
  • Hole distance: 22 mm
  • W x H: 40 x 46 mm
  • Rail distance: 11.5 mm
  • Max. payload: 45 kg
  • Weight: approx. 0.1 kg
  • Material: aluminum
  • Surface: anodized
