Rail holder 117-032
aluminumstainless steel

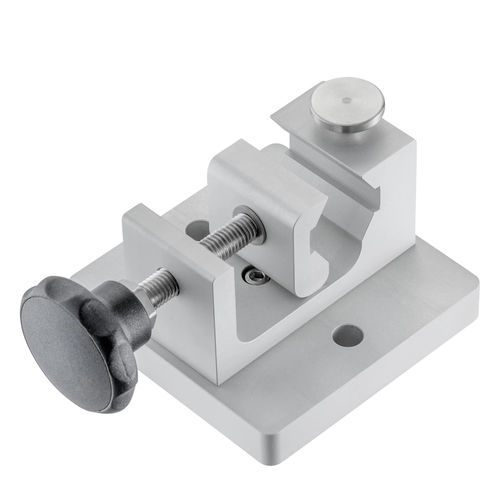

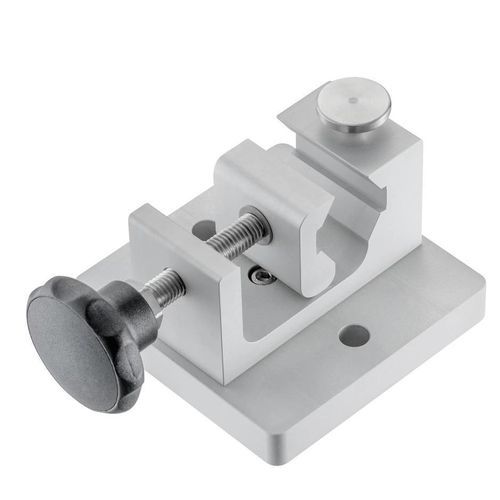

Rail holder - 117-032 - Guido Buschmeier Maschinenbau - aluminum / stainless steel
Rail holder - 117-032 - Guido Buschmeier Maschinenbau - aluminum / stainless steel
Add to favorites
Compare this product
Go to the Guido Buschmeier Maschinenbau website for more information

Characteristics

Product applications
for rails
Material
stainless steel, aluminum
Weight

0.8 kg
(1.8 lb)

Description

Product types
  • Medical device
  • Intermediate product


Article number
117-032

Product details
  • Clamp cross-section pole: 25 - 38 mm
  • Clamp cross-section rails: 25 x 10 - 35 x 10 mm
  • Thread: (4x) M6
  • Thread distance: 70 mm
  • Max. payload: 25 kg
  • Weight: approx. 0.8 kg
  • Material: stainless steel / aluminum
  • Surface finish: brushed / anodized


Product advantages
  • Mountable without tools
  • Rotatable plate for orientation adjustment
  • Anti-rotation device via spring pin
  • Mounting on 25 x 10 mm rails according to DIN EN ISO 19054 and on poles Ø 25 - 38 mm


Technical specifications
  • Article no.: 117-032
  • Threads: (4x) M6
  • Thread distance: 70 mm
  • Maximum payload: 25 kg
  • Weight: approx. 0.8 kg
  • Material: stainless steel / aluminum
  • Surface finish: brushed / anodized
