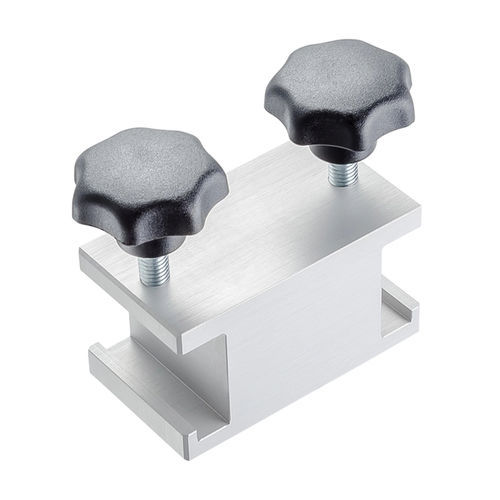

Rail holder 117-014

aluminum

Product overview
Parallel rail clamp for mounting two standard rails without tools. Compatible with rails 25 x 10 mm according to DIN EN ISO 19054. Anodized aluminum construction.

Product details
Rail cross-section: 25 x 10 mm
Overall cross-section: 45 x 45 mm
Rail distance: 60 mm
Max. payload: 20 kg
Weight: approx. 0.4 kg
Material: aluminum
Surface: anodized

Product advantages

• Mounting of two parallel rails
• Tool-free mounting
• Compatible with 25 x 10 mm rails according to DIN EN ISO 19054

Product types

• Medical device
• Intermediate product

Characteristics / technical specifications

• Art-No.: 117-014
• Designation: rail clamp, parallel
• Rail cross-section: 25 x 10 mm
• Overall cross-section: 45 x 45 mm
• Rail distance: 60 mm
• Maximum payload: 20 kg
• Weight: approx. 0.4 kg
• Material: aluminum
• Surface finish: anodized
• Mounting: tool-free
