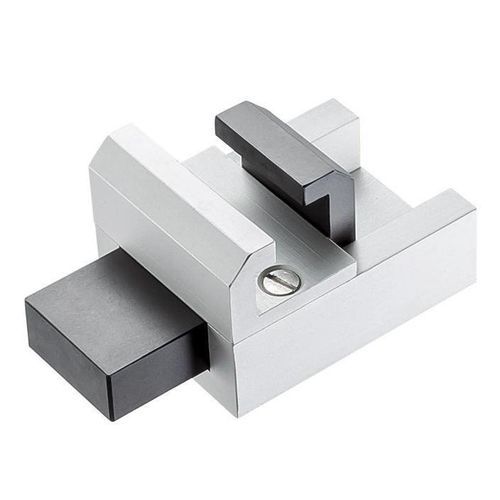

Rail holder 117-002
aluminum

Rail holder - 117-002 - Guido Buschmeier Maschinenbau - aluminum
Rail holder - 117-002 - Guido Buschmeier Maschinenbau - aluminum
Rail holder - 117-002 - Guido Buschmeier Maschinenbau - aluminum - image - 2
Rail holder - 117-002 - Guido Buschmeier Maschinenbau - aluminum - image - 3
Add to favorites
Compare this product
Go to the Guido Buschmeier Maschinenbau website for more information

Characteristics

Product applications
for rails
Material
aluminum
Weight

0.2 kg
(0.4 lb)

Description

Product
  • Art-No.: 117-002
  • Product types: Medical device; Intermediate product


Product details
  • Rail cross-section: 25 x 10 mm
  • Ø holes: 2 x 4.5 mm
  • Hole distance: 15 mm
  • Width x Height: 50 x 60 mm
  • Rail distance: 24 mm
  • Max. payload: 10 kg
  • Weight: approx. 0.2 kg
  • Material: aluminium
  • Surface: anodised


Product advantages
  • Mounting various accessories on rails
  • Tool-free installation
  • Quick clamping system
  • For 25 x 10 mm rails according to DIN EN ISO 19054


Product types / Intended use
  • Medical device: Available on request and must be specified in the order; medical versions are supplied with intended-use information and CE marking
  • Intermediate product: Supplied as a pre-product, semi-finished part or component for further processing, assembly or combination into marketable finished items


Technical specifications
  • Art-No.: 117-002
  • Rail cross-section: 25 x 10 mm
  • Ø holes: 2 x 4.5 mm
  • Hole distance: 15 mm
  • Width x Height: 50 x 60 mm
  • Rail distance: 24 mm
  • Max. payload: 10 kg
  • Weight: approx. 0.2 kg
  • Material: aluminium
  • Surface: anodised
