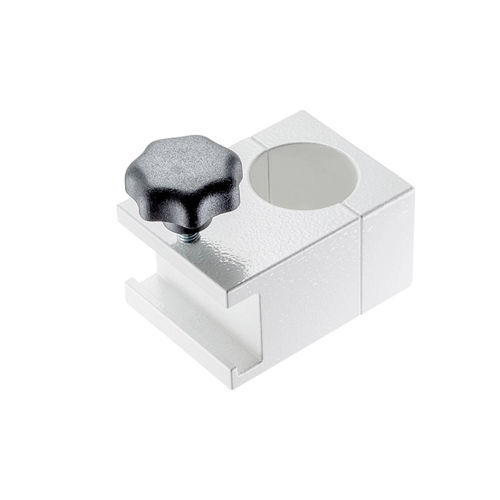

Rail holder 117-018

aluminum

Product overview

• Product name: rail clamp, divided
• Art-No.: 117-018
• Product types:
• Medical device
• Intermediate product

Product details
Rail cross-section: 25 x 10 mm
Ø hole: 38 mm
Cross-section x length: 60 x 45 x 83 mm
Rail distance: 45 mm
Max. payload: 50 kg
Weight: approx. 0.45 kg
Material: aluminum
Surface finish: powder coated, RAL 9010


Product advantages

• Enables retrofitting of poles to rails
• Mounting on rails (25 x 10 mm) according to DIN EN ISO 19054

Technical specifications

• Rail cross-section: 25 x 10 mm
• Ø hole: 38 mm
• Cross-section x length: 60 x 45 x 83 mm
• Rail distance: 45 mm
• Max. payload: 50 kg
• Weight: approx. 0.45 kg
• Material: aluminum
• Surface finish: powder coated, RAL 9010
• Art-No.: 117-018
