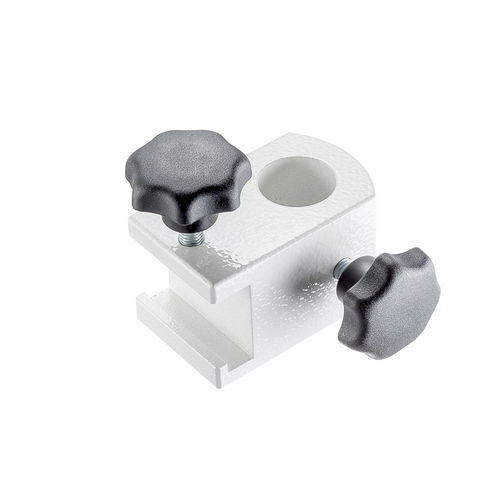

Rail holder 117-005-dd

pole-mountedaluminum

Product types

• Medical device
• Intermediate product

Product details
Rail cross-section: 25 x 10 mm
Ø hole: 18 / 25 mm
Cross-section / length: 45 x 45 mm / 75 mm
Rail distance: 38 mm
Max. payload: 20 kg
Weight: approx. 0.4 kg
Material: aluminium
Surface finish: powder coated, RAL 9010


Product advantages

• Mounting poles on rails
• Mountable without tools
• Mounting on 25 x 10 mm rails according to DIN EN ISO 19054

Available executions / Options

• Ø hole 18 mm
• Ø hole 25 mm

Characteristics / Technical specifications

• Art-No.: 117-005-dd
• Rail cross-section: 25 x 10 mm
• Ø hole: 18 / 25 mm
• Cross-section / length: 45 x 45 mm / 75 mm
• Rail distance: 38 mm
• Max. payload: 20 kg
• Weight: approx. 0.4 kg
• Material: aluminium
• Surface finish: powder coated, RAL 9010
