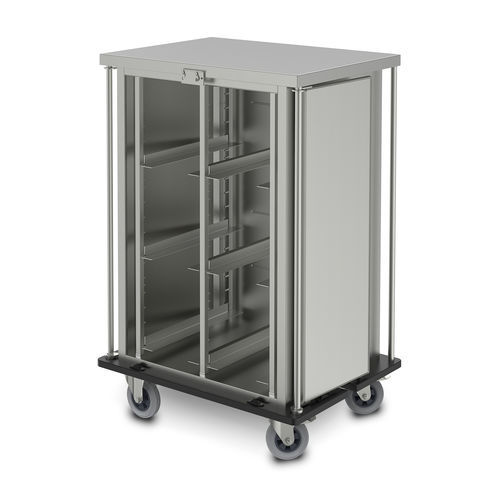

Hospital trolley CTW/M 6ISO 1285/751/1471

medicaltransportlogistics

Overview The container transport cart CTW/M 6ISO by Hupfer is designed for safe storage and transport of 6×ISO containers in medical and hygiene-sensitive environments. It features hygienic stainless-steel surfaces for easy, residue-free cleaning, 2-point locking wing doors with 270° opening and ergonomic one-handed closure for efficient handling. Robust castors and true-tracking mobility ensure precise manoeuvring in busy clinical areas.

Key features

• 2-point door locking for secure transport and reliable sealing
• Ergonomic one-handed door closure with automatic engagement
• Stainless-steel paper clip for hygienic attachment of trolley information
• Red/green status indicator for quick identification of load status
• Hygienic stainless-steel surfaces, welded interior and insertion rails for residue-free cleaning
• Height-adjustable shelves/rails: tool-free adjustment to accommodate varying container heights
• All-round bumper strip to protect the trolley in daily operations
• True-tracking mobility: 2 fixed castors + 2 swivel castors with brakes for safe manoeuvring; wheel Ø 160 mm, rubber tread
• Suitable for standard washing machines (washing machine resistant)

Technical information Cart construction: Modular construction
Cart housing construction: Single-walled
Castor attachment: Bolt-on panel
Castor housing material: Stainless steel
Door lock (closed): 2-point locking
Material: Stainless steel (hygienic surfaces)
Max. Door opening angle: 270 °
Payload: 100 kg
Push handle construction: Push handles (vertical)
Roller equipment: 2 fixed castors, 2 swivel castors with brakes
Type of tyre tread: Rubber – Standard
Wheel Ø: 160 mm
Overall dimensions (W x D x H): 1285 mm x 751 mm x 1471 mm
GTIN / EAN: 4044593092895
Article number: 7505988

Product specifications

• Model designation: CTW/M 6ISO
• Brand: Hupfer Metallwerke GmbH & Co. KG
• Material: Stainless steel (hygienic surfaces, welded interior with L-profile insertion rails)
• Door locking: 2-point locking with ergonomic one-handed closure
• Door opening angle: up to 270° (wing doors)
• Shelf adjustment: Tool-free height adjustment of shelves/rails
• Rails: L-shaped for StU and U-shaped for ISO
• Mobility: 2 fixed castors + 2 swivel castors with brakes; wheel Ø 160 mm; rubber standard tread
• Castor housing: Stainless steel; castor attachment via bolt-on panel
• Payload capacity: 100 kg
• Suitable for washing: Washing machine resistant
• Dimensions (W x D x H): 1285 mm x 751 mm x 1471 mm
• GTIN/EAN: 4044593092895
• Article number / SKU: Art.: 7505988
