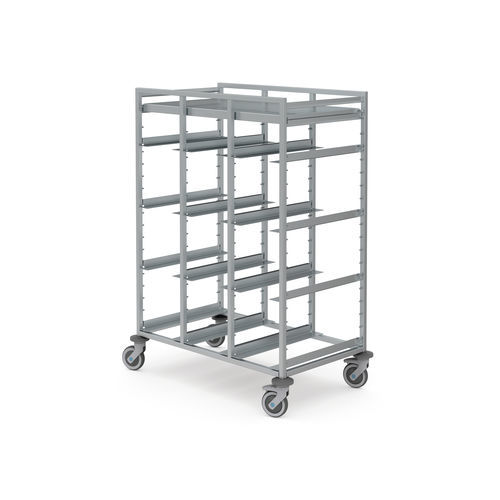

Sterile material trolley CTW/O 3StE 430/675/1448

transporthandlinglogistics

Product information
The Hupfer open container transport trolley CTW/O 3StE is designed for handling, transport and supply of sterile goods in medical environments. Made from stainless steel for hygienic cleaning, it accepts Sterilisation Units (STU) in a 3×STU nominal format. The closed shelf support secures containers and the set of four pairs of L-rails provides flexible insertion points. Welded shelf bolts and tool-free support replacement enable fast adjustments and simplified maintenance. Four swivel castors (two with total locks) with antistatic rubber tyres and 125 mm diameter ensure smooth manoeuvring and reliable locking. Delivered fully assembled for immediate use.

Key facts

• For 3 STU
• Includes 4 pairs of L-rails
• Antistatic castors

Features

• Solid stainless steel shelf provides a hygienic support surface and facilitates residue-free cleaning
• Set of 4 pairs of L-rails allows easy insertion and removal of GN/containers
• Hygienic stainless steel surfaces reduce microbial retention and enable quick cleaning
• Welded shelf bolts permit tool-free height adjustment and secure shelf fixation
• Tool-free shelf exchange simplifies adaptation to different storage needs and cleaning workflows
• Four swivel castors (two with total locks) provide precise manoeuvrability and secure immobilisation
• Construction suitable for daily use in medical and catering supply chains

Technical information
Antistatic wheels: Yes
Castor attachment: Round pin
Castor housing material: Plastic
Chassis suitability: Off-premises transport
Delivery condition: Fully assembled
Impact protection construction: Deflector rollers
Insertions construction: L-rails
Insertion size: Sterilisation Unit (STU)
Material: Stainless steel
Nominal format: Sterilisation Unit (STU) 3
Number of compartments: 1
Number of insertions: 4
Payload: 90 kg
Pitch: 62.5 mm
Roller equipment: 2 swivel castors, 2 swivel castors with brakes
Suitable for transport cart washing devices: Not approved
Type of tyre tread: Rubber – Standard
Wheel ø: 125 mm
With side push-through protection: No
With tilt protection: No

Technical specifications

• Brand: Hupfer Metallwerke GmbH & Co. KG
• Model (denomination commerciale): CTW/O 3StE
• Article number (SKU): Art.: 7506754
• GTIN / EAN: 4044593089154
• Material: Stainless steel
• Weight: 20.09 kg
• Dimensions (H × W × D): 1448 mm × 430 mm × 675 mm
• Payload: 90 kg
• Nominal format: Sterilisation Unit (STU) 3
• Number of insertions: 4 (set including 4 pairs of L-rails)
• Pitch: 62.5 mm
• Wheel diameter: 125 mm
• Roller equipment: 2 swivel castors; 2 swivel castors with brakes (antistatic)
• Castor attachment: Round pin; housing material: Plastic
• Delivery condition: Fully assembled
• Suitable for transport cart washing devices: Not approved
• Impact protection: Deflector rollers
• Tool-free shelf exchange / tool-free support replacement
