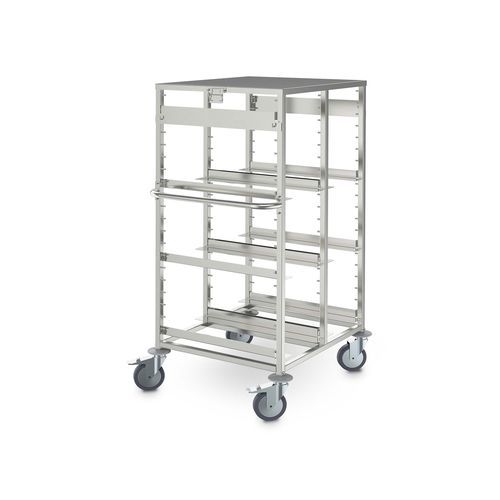

Sterile material trolley CTW/O 6ISO 951/670/1142

transportlogisticsstainless steel

Short description
The open container transport trolley is designed for organised storage and safe internal transport of medical containers (STU). Its open construction provides fast access to loads and supports efficient sterile logistics workflows.

Product information
Stainless steel construction with six ISO-compatible insertions for STU containers. The trolley is supplied fully assembled and equipped with a castor set (2 swivel castors, 2 swivel castors with brakes) fitted with rubber tyres (Ø 125 mm). The round-pin castor attachment and plastic castor housings ensure straightforward maintenance. The unit integrates impact-deflector rollers and L-rail insertions to stabilise containers during transport. Nominal height, width and depth are adapted to standard sterile processing requirements, while the payload and load per insertion support safe handling of trays and instruments.

Features

• Open stainless steel frame for direct access to containers (STU)
• Castor set with two swivel castors and two swivel castors with brakes for manoeuvrability and secure positioning
• L-rail insertions compatible with ISO container sizes for organised loading
• Deflector rollers for impact protection during transport
• Delivered fully assembled for immediate use in sterile logistics areas

Technical specifications

• Antistatic wheels: Yes
• Castor attachment: Round pin
• Castor housing material: Plastic
• Cover construction: Cover plate
• Delivery condition: Fully assembled
• Depth rated: 670 mm
• Design of the locks: Total lock
• Impact protection construction: Deflector rollers
• Insertions construction: L-rails
• Insertion size: ISO
• Load capacity per insertion: 20 kg
• Material: Stainless steel
• Nominal height: 1,142 mm
• Number of insertions: 6
• Payload: 120 kg
• Roller equipment: 2 swivel castors, 2 swivel castors with brakes
• Type of tyre tread: Rubber – Standard
• Wheel ø: 125 mm
• Width rated: 951 mm
• Net weight: 33 kg
• GTIN/EAN: 4044593025176
