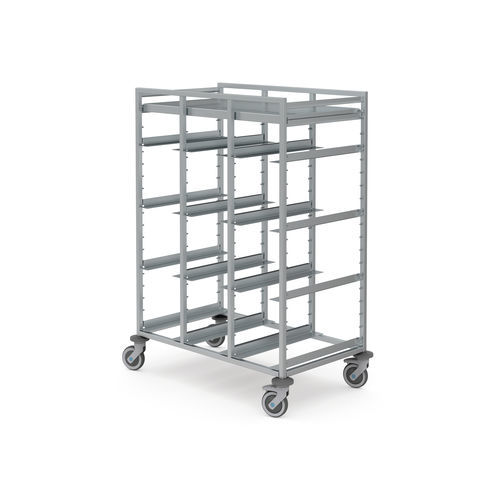

Sterilization trolley CTW/O 6StE 760/675/1448

for sterile materialsCSSDfor sterilization containers

Overview
The Hupfer open container transport trolley CTW/O 6StE is designed for hygienic, efficient handling of sterile goods and sterilisation units (STU). Constructed from stainless steel with smooth, easy-to-clean surfaces, it provides secure support for containers on closed shelf supports and eight pairs of L-rails for flexible storage configurations. Welded support bolts increase structural stability, and tool-free support replacement allows rapid adjustments. Four swivel castors, two with total locks and antistatic design, ensure controlled manoeuvring and secure positioning in clinical and sterile logistics environments.

Key facts

• For 6 STU
• Includes 8 pairs of L-rails
• Antistatic castors (2 with brakes)

Technical Information (table)
Antistatic wheels: Yes
Castor attachment: Round pin
Castor housing material: Plastic
Chassis suitability: Off-premises transport
Delivery condition: Fully assembled
Impact protection construction: Deflector rollers
Insertions construction: L-rails
Insertion size: Sterilisation Unit (STU)
Material: Stainless steel
Nominal format: Sterilisation Unit (STU) 6
Number of compartments: 2
Number of insertions: 8
Payload: 140 kg
Pitch: 62.5 mm
Roller equipment: 2 swivel castors, 2 swivel castors with brakes
Suitable for transport cart washing devices: Not approved
Type of tyre tread: Rubber – Standard
Wheel ø: 125 mm
With side push-through protection: No
With tilt protection: No

Specifications

• Brand: Hupfer Metallwerke GmbH & Co. KG
• Model designation: CTW/O 6StE
• Article number (SKU): Art.: 7506753
• EAN (GTIN-13): 4044593089147
• Material: Stainless steel
• Number of insertions: 8 (8 pairs of L-rails)
• Insertion size / nominal format: Sterilisation Unit (STU), 6
• Payload: 140 kg
• Pitch between insertions: 62.5 mm
• Roller equipment: 2 swivel castors + 2 swivel castors with brakes (antistatic)
• Wheel diameter: 125 mm
• Castor attachment: Round pin; castor housing material: Plastic
• Delivery condition: Fully assembled
• Number of compartments: 2
• Weight: 32.46 kg
• Dimensions (W×D×H): 760 mm × 675 mm × 1448 mm
