Sterilization basket trolley CTW/M 9StE 1285/751/1471

for sterile materialssterilizationcleaning

Product information

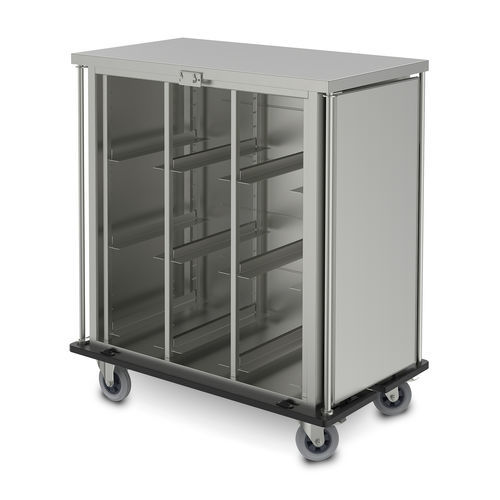

Single-walled transport trolley made entirely of stainless steel for handling sterile supplies. Loading is performed on the long side via two welded double-wing doors with a 270° opening angle. Doors are automatically latching on robust hinges mounted to vertical push bars and feature a 2-point transport lock with optional upper sealing and lower-edge blocking extensions. One door includes a stop bead and extra hygienic lip seals for improved dust protection. The interior includes removable, height-adjustable L-shaped shelf rails for standardised StE baskets. Four continuous vertical push bars allow manoeuvring even with doors open. The chassis is inherently stable, suitable for delivery transport and compatible with automatic trolley transport systems. Continuous bumper strips protect the unit and allow frontal towing device connection. The trolley runs on two swivel castors with total lock and two fixed castors, secured by bolt-on plates.

Key facts

• With L-shaped rails for StE
• With U-shaped rails for ISO
• Vertical push handles
• Wing doors with 270° opening angle

Features

• Modular housing with standardised prefabricated modules for flexible configuration and easy maintenance
• Stainless steel document clip for hygienic attachment of trolley information
• Clear red/green status display for quick identification of load status
• Hygienic stainless steel surfaces for fast, residue-free cleaning
• Welded stainless steel wing doors with 270° opening and 2-point locking for secure transport
• Height-adjustable removable shelves for tool-free adaptation to varying basket heights
• All-round bumper strip protects against impacts during handling
• True-tracking mobility: 2 swivel castors with brakes + 2 fixed castors for precise manoeuvring

Technical information
Cart construction: Modular construction
Castor attachment: Bolt-on panel
Castor housing material: Stainless steel
Design of the locks: Total lock (2-point)
Impact protection construction: Bumper strip around the bottom
Insertions construction: L-rails (removable, height-adjustable)
Material: Stainless steel
Max. Door opening angle: 270°
Nominal format: StE baskets 600 × 300 mm
Payload: 150 kg
Push handle construction: Vertical push handles
Quantity nominal format: 9
Roller equipment: 2 fixed castors, 2 swivel castors with brakes
Suitable for transport cart washing devices: Washing machine resistant
Type of tyre tread: Rubber – Standard
Wheel Ø: 160 mm

Remarks
Art.: 7504644 (product SKU shown on page)

Technical specifications

• Denomination / Model reference: CTW/M 9StE 1285/751/1471
• Material: Stainless steel
• GTIN / EAN: 4044593005062
• Article / SKU: Art.: 7504644
• Weight: 123 kg
• External dimensions (H×W×D): 1471 × 1285 × 751 mm
• Payload: 150 kg
• Nominal format capacity: 9 × StE baskets (600 × 300 mm)
• Wheel Ø: 160 mm; Roller equipment: 2 fixed castors + 2 swivel castors with brakes; Castor housing material: stainless steel; Castor attachment: bolt-on panel
• Door design: Double-walled double-wing welded stainless steel doors, 270° opening, 2-point lock with transport latch and sealing option
• Insertions: Removable, height-adjustable L-rails (standard)
• Suitable for washing: Washing machine resistant
