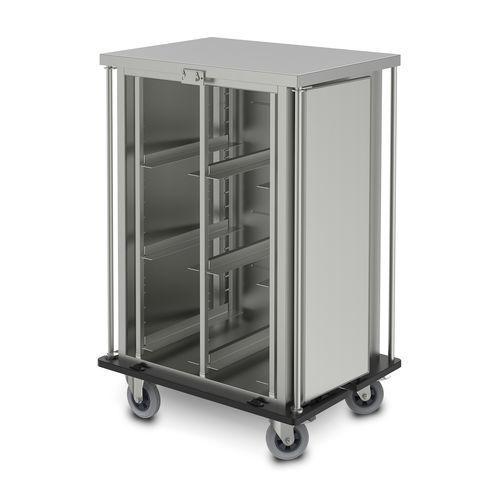

Sterile material trolley CTW/M 6StE 965/751/1469

for sterilization basketstransferlogistics

Product information
Trolley made entirely of high-quality stainless steel, self-supporting standard design. Single-walled transport trolley closed on all sides. The transport trolley is loaded on the long side via two double-walled double-wing doors that can be opened at an angle of 270°. The automatically-latching doors are attached to robust stainless steel hinges mounted on vertical push bars. A 2-point door lock with a transport latch and integrated sealing option in the upper section of the door, in combination with extensions to block the door lower edges, keep the doors safely closed during transport. The left door is additionally fitted with a stop bead, so together with the trolley profiling and the extra hygienic and easy to clean lip seals, optimum dust protection for the items to be transported is guaranteed. Extensions also serve to keep the doors open during loading, so no additional elements to be operated by a hand or foot are required. Rear wall with triple rolled bead for stiffening and sound insulation. Interior equipped as standard with removable L-shaped shelf rails that are height-adjustable within the entire interior height, for storing standardised sterile supplies baskets and containers. Four continuous vertical push bars (2 per side) for manoeuvring even with the doors open. Inherently stable chassis design, suitable for delivery transport and adaptable to automatic trolley transport systems. Bumper protective feature provided by robust, continuous bumper strips that are effective even with the doors open, with frontal recesses for connecting a towing device to the chassis. Trolley runs on 2 swivel casters with total lock, 2 fixed casters, fastened by means of screw-on plates and several screws.

Key Facts

• With L-shaped rails for StU
• With U-shaped rails for ISO
• Vertical push handles
• Wing doors with 270° opening angle
• Modular housing with standardised, prefabricated modules ensures high durability and cost-effectiveness
• Welded stainless steel double-wing doors with 270° opening angle provide optimum access and secure locking
• Integrated 2-point locking system and sealing options guarantee safe transport and dust protection
• Removable, height-adjustable L-shaped shelf rails accommodate standardised sterile supplies containers flexibly
• Robust all-round bumper strips protect against collisions
• Four vertical push bars enable easy manoeuvring even with doors open
• Stable chassis design with 2 swivel castors with brakes and 2 fixed castors ensures true-tracking mobility and operational safety
• Constructed entirely from high-quality stainless steel for hygiene, robustness, and easy cleaning

Technical information
Cart construction: Modular construction
Cart interior construction: Modular construction
Castor attachment: Bolt-on panel
Castor housing material: Stainless steel
Chassis suitability: Off-premises transport
Construction of the middle panel: Partition wall with L-shaped rails
Design of the locks: Total lock
Impact protection construction: Bumper strip around the bottom
Insertions construction: L-rails
Insertion type: Lengthwise insertion
Interior/compartment material: Stainless steel
Material: Stainless steel
Max. Door opening angle: 270 °
Nominal format: StE baskets 600 × 300 mm
Payload: 100 kg
Pitch: 61 mm
Push handle construction: Vertical push handle
Quantity nominal format: 6
Roller equipment: 2 fixed castors, 2 swivel castors with brakes
Suitable for transport cart washing devices: Washing machine resistant
Towing device: Not available
Type of tyre tread: Rubber – Standard
Wheel ø: 160 mm

Specifications

• Model designation (displayed): CTW/M 6StE 965/751/1469
• Nominal format quantity: 6 (StE baskets 600 × 300 mm)
• Payload: 100 kg
• Overall weight (product weight): 105 kg
• Dimensions (H × W × D) as listed: 1472 mm × 1031 mm × 751 mm
• Pitch between shelf levels: 61 mm
• Wheel diameter: 160 mm
• Roller equipment: 2 fixed castors and 2 swivel castors with brakes (bolted on)
• Castor housing material: Stainless steel
• Chassis: inherently stable design, suitable for off-premises/delivery transport and adaptable to automatic trolley transport systems
• Doors: double-walled double-wing doors, welded stainless steel, 270° opening, automatic latching, 2-point locking with transport latch and integrated sealing option
• Shelf rails / insertions: removable L-shaped rails (L-rails), lengthwise insertion
• Protection: continuous bumper strips around bottom; extensions to block door lower edges; hygienic lip seals and stop bead on left door for dust protection
• Push handles: four continuous vertical push bars (two per side) for manoeuvring
• Material: entirely stainless steel (housing and interior)
• Suitable for washing machines: washing machine resistant
