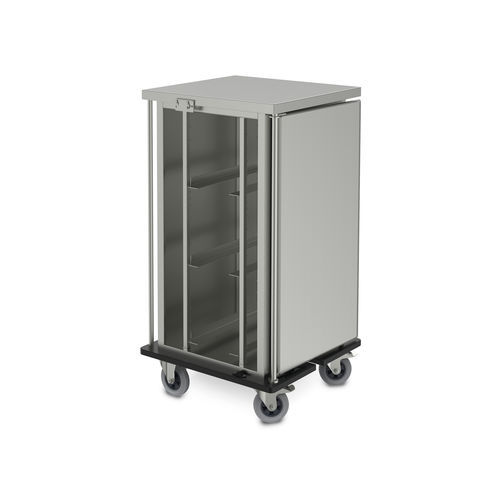

Sterile material trolley CTW/M 3StE 785/751/1471

transportstainless steelwith hinged door

Product information
Cart made entirely of stainless steel with a single-walled, fully enclosed hygienic construction. Loading is via a double-walled hinged door with up to 270° opening. The self-locking door is guided on a vertical push rod by robust stainless-steel hinges. A door locking mechanism with a transport latch and an optional integrated seal in the upper door area, together with overlapping pieces securing the lower door edge, ensures safe closure during transport. Hygienic, easy-to-clean door seals provide dust protection. Door retention during loading is achieved with overlapping pieces without additional hand- or foot-operated elements. The rear wall features a triple roll bead for stiffening and sound insulation. The interior is standardly equipped with removable and height-adjustable L-profile support rails to accept standard sterile goods baskets/containers across the full interior height. Four vertically continuous push rods (two per side) allow maneuvering even with open doors. The form-stable chassis is suitable for off-site transport and can be adapted to automatic cart transport systems. Collision protection is provided by a continuous bumper strip with end cutouts for towing devices and remains effective with the door open. The cart runs on two swivel castors with total lock and two fixed castors, secured with multiple screwed mounting plates. The cart is washing machine resistant.

Key facts

• With L-shaped rails for StU
• With U-shaped rails for ISO
• Vertical push handles
• Wing doors with 270° opening angle

Technical information (summary)
Cart construction: Modular construction
Castor attachment: Bolt-on panel
Castor housing material: Stainless steel
Material: Stainless steel (single-walled, fully enclosed)
Max. door opening angle: 270°
Payload: 50 kg
Push handle construction: Vertical push rods
Roller equipment: 2 fixed castors, 2 swivel castors with total lock
Suitable for transport cart washing devices: Washing machine resistant
Type of tyre tread: Rubber – Standard
Wheel ø: 160 mm

Technical specifications

• Brand: Hupfer Metallwerke GmbH & Co. KG
• Article number: 7505989
• Model designation: CTW/M 3StE 785/751/1471
• EAN (GTIN-13): 4044593087433
• Material: Stainless steel (single-walled, fully enclosed)
• Dimensions (H × W × D): 1471 mm × 785 mm × 751 mm
• Payload: 50 kg
• Door opening angle: up to 270° (double-walled, 270° hinged door)
• Interior: Removable and height-adjustable L-profile support rails (for standard sterile goods baskets/containers)
• Chassis: Form-stable, suitable for off-site transport and adaptable to automatic cart transport systems
• Castors: 2 swivel castors with total lock + 2 fixed castors; castor housing: stainless steel; castor attachment: bolt-on panel
• Wheel diameter: 160 mm; tyre tread: Rubber (standard)
• Push handles: Vertical push rods (4 vertically continuous push rods; 2 per side) for maneuvering with open doors
• Collision protection: Continuous bumper strip on chassis
• Hygiene features: Hygienic, easy-to-clean door seals; welded stainless-steel doors
• Washing resistance: Washing machine resistant
