Diagnostic rapid test IHP-302

IgGH. pylori IgGHelicobacter pylori

Product Overview
The Helicobacter pylori IgG antibody rapid test kit is a lateral flow, visual immunoassay for the qualitative detection of H. pylori-specific IgG antibodies in human serum or plasma. The kit is intended as an aid to the diagnosis of H. pylori infection in clinical screening and point-of-care settings.

Test Principle
This assay is a double-antigen chromatographic lateral flow immunoassay using colloidal gold. The test device contains a conjugate pad with colloidal gold coupled to H. pylori antigens and a nitrocellulose membrane with a test line (T) coated with H. pylori antigens and a control line (C) coated with goat anti-H. pylori antibody. If H. pylori-specific IgG is present in the specimen, a visible rose-pink T line appears. Absence or levels below the detection threshold yield no T line. The C line must appear to confirm adequate specimen volume and proper flow as an internal procedural control.

Main Components

• Kit options: 20 tests/kit or 40 tests/kit.

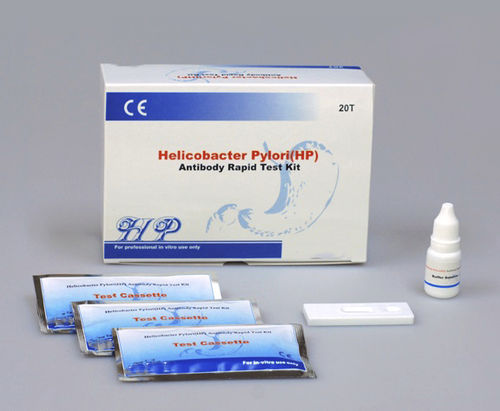

• Contents (20 tests): 20 test cassettes, 20 droppers, 1 buffer bottle, 1 instruction leaflet.
• Contents (40 tests): 40 test cassettes, 40 droppers, 2 buffer bottles, 1 instruction leaflet.

Product Range (selected entries)

• Helicobacter pylori — IHP-602 — HP Ag test cassette — Feces
• Helicobacter pylori — IHP-302 — HP Ab test cassette — Serum/Plasma (P/S)

Usage
Qualitative detection of H. pylori IgG antibody in human serum or plasma; intended to assist clinical diagnosis and screening for H. pylori infection.

Technical characteristics / specifications

• Principle: Double-antigen chromatographic lateral flow immunoassay (colloidal gold).
• Target analyte: Helicobacter pylori specific IgG antibody.
• Specimen type: Human serum or plasma (P/S).
• Test format: Lateral flow test cassette with T (test) and C (control) lines.
• Antigen source: H. pylori cell lysate used for conjugate and test line coating.
• Internal control: C line (goat anti-H. pylori antibody) confirms specimen volume and flow.
• Kit sizes: 20 tests/kit and 40 tests/kit with corresponding consumables as listed above.
• Intended use: Rapid, qualitative, visual screening to aid diagnosis.
