Electronic cartoner AD Series

servo-drivenvacuumwraparound

Overview
The AD Series is a wraparound cartoning machine for bouillon cubes fed from upstream dosing equipment. It forms cartons from flat blanks with tucked end flaps and hot‑melt glued longitudinal seams. The series handles carton capacities from 2 to 48 cubes while offering compact footprint and full electronic/servo motion control to optimise format changeovers and production consistency.

Key variants

• AD8 — optimised for FD8 dosing; up to 400 boxes/min; full servomotor architecture for rapid changeovers.
• AD8/V — higher-speed version for FD12; up to 600 boxes/min; enhanced throughput and optional TPM‑oriented design (illuminated viewing panels, transparent interlocked guards).

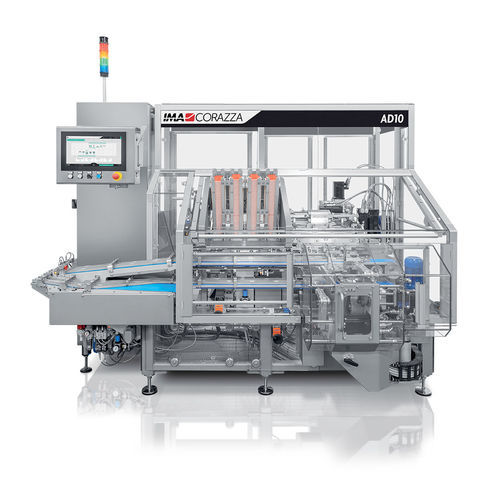

• AD10 — designed for FD10 integration; up to 500 boxes/min; compact layout with on-board electrical cabinet, flexible carton handling, on-board rejection and single-lane outfeed; optional automatic flat-blank loader.

Machine highlights

• High-speed wraparound forming from flat blanks with tucked end flaps and hot‑melt longitudinal seam.
• Wide carton capacity: supports formats from 2 up to 48 cubes with consistent forming accuracy.
• Compact footprint with easy operator access for operation, cleaning and maintenance; colour-coded format parts for simplified changeovers.
• Optimised high-speed output across variants (up to 600 cartons/min in AD8/V).

Technical data (table view)

• Models: AD8 | AD8/V | AD10.
• Production capacity: AD8 — up to 400 boxes/min; AD8/V — up to 600 boxes/min; AD10 — up to 500 cartons/min.
• Power supply: 3P x 400 V – 50 Hz – 7 A (AD8); 9 A (AD8/V and AD10).
• Compressed air consumption: AD8 220 Nl/min; AD8/V 300 Nl/min; AD10 240 Nl/min (min. operating pressure 6 bar).
• Vacuum: 10 m3/h (operational vacuum 600 ± 50 mm Hg).
• Weight (approx.): AD8 / AD8V ~3,500 kg; AD10 ~2,000 kg.
• Supported box dimensions (mm): A = 30–97; B = 49–189; C = 11–45.
• Lanes: 1–4. Layers: 1–3.

Typical line & layout features
Designed for integration with FD series dosing machines and optional on‑board flat‑blank loading. AD10 pairs with FD10 to minimise footprint and simplify line layout: single-lane outfeed, on-board rejection and reduced marking/merging complexity.

Technical specifications

• Intended product: bouillon cubes (fed from upstream dosing machine).
• Carton type: wraparound cartons from flat blanks with tucked-in end flaps and hot‑melt glued longitudinal seam.
• Carton capacity range: 2–48 cubes.
• Motion & control: full servomotor/electronic motion control for accurate, fast format changes.
• Integration: optimised for FD dosing machines (FD8, FD10, FD12) and downstream handling; options for automatic blank loading and TPM-oriented guards.
