Intermittent-motion cartoner A83

blisterfor the pharmaceutical industrymedium-speed

Overview

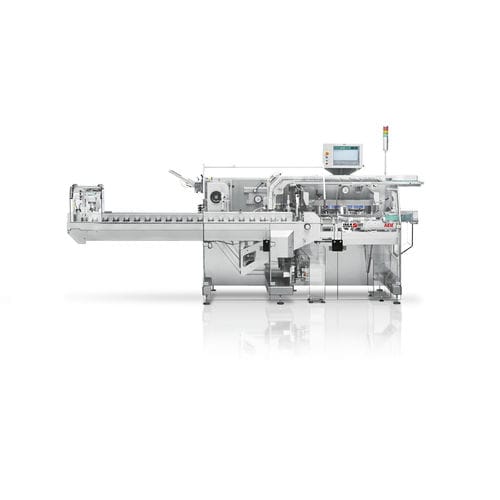

The intermittent-motion cartoner A83 is engineered for blister packaging in pharmaceutical production, offering medium-speed processing of low-to-medium batches. Its balcony structure provides full visibility of the packaging flow and easy operator access, helping to minimise downtime through straightforward operation and rapid changeovers.

Key benefits

• Cost-efficiency: Low maintenance requirements and competitive total cost of ownership.
• User-friendliness: Intuitive controls suitable for semi-skilled operators.
• Reliability: Consistent cartoning performance, including with recycled carton materials.
• Simplicity: Fast and tool-free format changeovers.

Product focus
A pragmatic, low-investment solution tailored to pharmaceutical blister cartoning where reliability, limited operator training and predictable running costs are priorities.

Machine versions

• A83 — Version for blister cartoning; handles a wide range of blister formats with production speeds up to 160 cartons/min.
• A83S — Version for suppository cartoning; designed for gentle handling and reliable performance, with production speeds up to 160 cartons/min.

Technical Data (table)
A83/A83S
Production output: Up to 160 cartons/min.
Carton width: 35-90 mm
Carton length: 75-150 mm
Carton depth: 14-90 mm

Production plant
IMA Safe

Technical specifications

• Type: Intermittent-motion cartoner for blister packaging
• Production speed: Up to 160 cartons per minute (A83 / A83S)
• Acceptable carton dimensions (W x L x D): 35-90 mm x 75-150 mm x 14-90 mm
• Versions available: A83 (blister), A83S (suppository)
• Design highlights: Balcony structure for full visibility and operator accessibility
• Advantages: Low maintenance, intuitive operation, fast format changeovers, compatibility with recycled cartons
