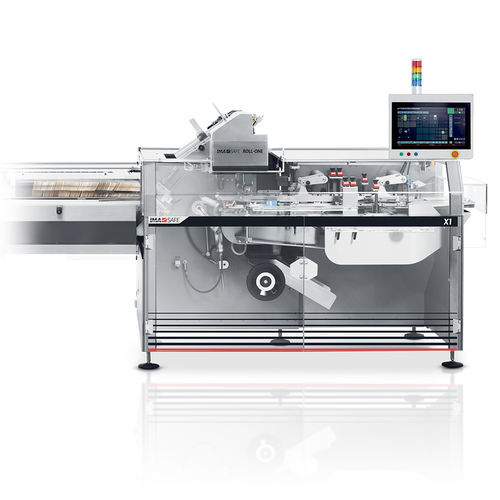

Intermittent-motion cartoner X Series

servo-drivenrobotizedcompact

Overview
The X Series multipurpose intermittent-motion cartoner is designed to handle a wide variety of products using both mechanical and robotized feeding systems. Available in multiple versions, the series provides versatility across carton sizes and packable products while maintaining a compact footprint and a balcony design. The machine integrates a T&T solution inside the frame to preserve standard length and simplify line configuration. It is engineered for intuitive operation with minimal operator training, low maintenance requirements and fast changeovers due to a reduced number of size parts.

Available versions

• X1 and XL1
• X2 and XL2 — servo-driven versions

Key features

• Multipurpose intermittent-motion cartoner
• Mechanical and robotized feeding systems for broad product handling
• Versatility across products and carton sizes
• Compact footprint with balcony design for flexible line configuration
• Integrated T&T solution inside the frame
• Intuitive operation requiring minimal operator training
• Low maintenance requirements
• Fast changeover thanks to a minimum number of size parts

Production plant
Production plant: IMA Safe

Technical data
X SERIES – TECHNICAL DATA
MODEL | X1 – X2* | XL1 – XL2*
Production output | Up to 90 cartons/min. | Up to 60 cartons/min.
Carton dimensions
Width A (mm) | min. 15 - 105 max. | min. 15 - 165 max.
Height B (mm) | min. 12 - 90 max. | min. 12 - 100 max.
Length H (mm) | min. 65 - 220 max. | min. 65 - 220 max.
A+B (mm) | 195 max. | 240 max.

*Servo-driven version

Technical specifications

• Series: X Series
• Models: X1, X2 (servo), XL1, XL2 (servo)
• Production output: up to 90 cartons/min (X1–X2); up to 60 cartons/min (XL1–XL2)
• Carton width (A): X models min. 15–105 mm; XL models min. 15–165 mm
• Carton height (B): X models min. 12–90 mm; XL models min. 12–100 mm
• Carton length (H): min. 65–220 mm (both ranges)
• Maximum A+B: X models 195 mm; XL models 240 mm
• Feeding systems: mechanical and robotized
• Design: compact footprint, balcony design, integrated T&T inside frame
• Changeover: fast, minimum number of size parts
