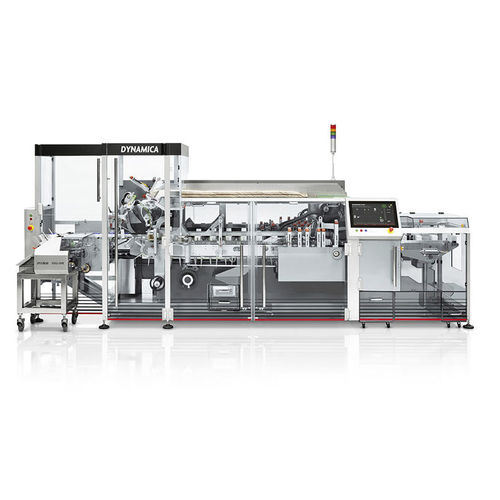

Intermittent cartoner DYNAMICA Series

continuous-motioncompactfor boxes

Overview
The DYNAMICA Series is a line of multi-purpose, continuous-motion cartoners available in multiple versions to match product characteristics, carton dimensions and production speed. The range delivers high application flexibility with varied infeed systems and carton formats. The DYNAMICA S can operate in continuous or intermittent motion depending on the product. Carton magazine, product flow and leaflet-folding unit are positioned for improved ergonomics. The series is compact, simple to operate and quick to set up.

Key highlights

• Flexibility: multi-purpose cartoner covering a wide range of product types and carton dimensions.
• Feeding systems: multiple infeed solutions to handle diverse products.
• Versatility: compatible with numerous applications and carton formats.
• Leaflet folding: IMA Safe Roll-One unit for folding flat sheets across leaflet thicknesses; fast parts changeover for different leaflet sizes.
• Ergonomics: optimized magazine and unit heights for operator access.
• Usability: straightforward management and intuitive setup.

Functional modules & options

• IMA Safe Roll-One leaflet-folding unit: patented module for flat-sheet folding across leaflet thicknesses; quick changeover via part replacements.
• Track & Trace integrated module: option to fit camera and ink-jet systems for cartoning serialization, reducing line length and improving process integration.
• Feeding systems: cost-effective and flexible options for pharmaceutical and non-pharmaceutical sectors; multiple infeed configurations for different products.

Media & visual highlights
Available media include machine video, product transport sequences, carton magazine handling, carton pick-up and opening, Roll-One leaflet-folding unit and product insertion into cartons.

Technical data (table summary)
TECHNICAL DATA DYNAMICA
| Model | Width (mm) | Height (mm) | Length (mm) | Production output
DYNAMICA L | min 25 – max 130 | min 12 – max 90 | min 65 – max 200 | Up to 250 cartons/min.
DYNAMICA E | min 30 – max 90 | min 15 – max 65 | min 100 – max 250 | Up to 300 cartons/min.
DYNAMICA SLEEVE* | min 48 – max 90 | min 8 – max 15 | min 65 – max 106 | Up to 350 cartons/min.
DYNAMICA S | min 25 – max 95 | min 12 – max 90 | min 65 – max 200 | Up to 350 cartons/min.
DYNAMICA V | min 25 – max 95 | min 12 – max 90 | min 65 – max 150 | Up to 400 cartons/min.
*Version for carton sleeve style

Applications
The DYNAMICA Series is suitable for pharmaceutical and non-pharmaceutical industries, supporting a broad range of products, carton formats and integrated modules (leaflets, serialization systems, multiple infeed solutions).

Technical specifications

• Available versions: DYNAMICA L, E, SLEEVE, S, V.
• Carton width ranges (examples): L 25–130 mm; E 30–90 mm; SLEEVE 48–90 mm; S 25–95 mm; V 25–95 mm.
• Carton height ranges (examples): L 12–90 mm; E 15–65 mm; SLEEVE 8–15 mm; S 12–90 mm; V 12–90 mm.
• Carton length ranges (examples): L 65–200 mm; E 100–250 mm; SLEEVE 65–106 mm; S 65–200 mm; V 65–150 mm.
• Production outputs (typical maxima): L up to 250 cartons/min; E up to 300 cartons/min; SLEEVE up to 350 cartons/min; S up to 350 cartons/min; V up to 400 cartons/min.
• Leaflet folding: IMA Safe Roll-One (patented, fast changeover).
• Optional Track & Trace module: camera and ink-jet integration for serialization.
• Design: compact continuous-motion cartoner with ergonomic magazine and unit heights; intuitive setup and operation.
