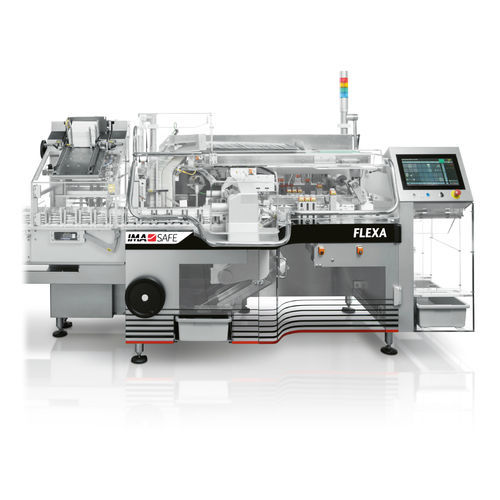

Continuous-motion cartoner FLEXA Series

intermittent-motionservo-drivencompact

Product overview
The FLEXA Series comprises intermittent- and continuous-motion cartoners designed to handle a wide range of products and carton formats. FLEXA accepts multiple carton configurations and dimensions and is available in intermittent-motion (single pusher) and continuous-motion (double pusher) versions. The design is compact and ergonomic to simplify loading of packaging materials. Changeovers are fast and tool-free thanks to servo-driven axes.

Highlights

• Feeding system versatility: multiple feeding solutions to suit different product types.
• Flexibility: supports a wide range of carton dimensions (see technical data).
• Compact footprint: available in both intermittent and continuous formats.
• Operator-friendly: ergonomic layout for easy access and loading.
• Hygiene: machine designed for straightforward cleaning and maintenance.

Cost-effective and flexible feeding systems
Modular feeding systems provide cost-effective handling for pharma and non-pharma sectors, allowing selection of the appropriate feeding method according to product shape, size and speed requirements.

Track & Trace
Integrated camera and ink-jet mounting options support serialization and marking workflows, reducing line length and improving overall efficiency.

TECHNICAL DATA (table)
FLEXA SERIES - CONTINUOUS MOTION | INTERMITTENT MOTION
MODELS: FLEXA CLD, FLEXA CLDB | FLEXA ASB, FLEXA ALB
Max speed: CLD up to 180 cycles/min; CLDB up to 160 cycles/min; ASB up to 120 cycles/min; ALB up to 120 cycles/min.
Carton width (A): CLD 15–90 mm; CLDB 15–140 mm; intermittent models 15–140 mm.
Carton height (B): continuous models 12–90 mm; ASB 12–65 mm; ALB 12–90 mm.
Carton length (C/H): continuous models 55–220 mm; ASB 55–190 mm; ALB 55–220 mm.

Technical specifications

• Machine family: FLEXA Series (intermittent and continuous-motion cartoners).
• Available models: FLEXA CLD, FLEXA CLDB (continuous); FLEXA ASB, FLEXA ALB (intermittent).
• Max production speed: up to 180 cycles/min (CLD).
• Carton dimensions: width A, height B, length C/H as specified in the technical data.
• Motion types: intermittent (single pusher) and continuous (double pusher).
• Changeover: fast, tool-free, servo-driven changeovers.
• Design: compact, ergonomic layout to facilitate loading and cleaning.
• Optional Track & Trace: integrated module for camera and ink-jet systems for serialization.
