CAD/CAM milling machine CC Force

dentalfor dental laboratoriesfor dental prostheses

Product overview

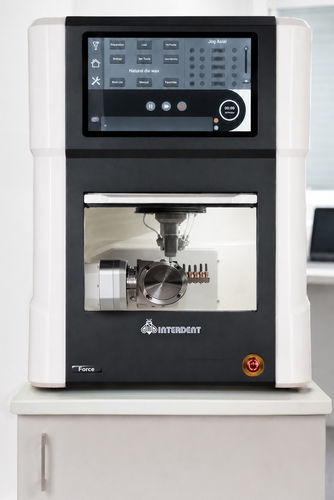

The CC FORCE is a 5-axis dental milling unit by Interdent designed for precision wet and dry milling of discs and blocks. Equipped with a 2.2 kW spindle and 60,000 rpm capability, it supports a wide range of materials including zirconia, PEEK, PMMA, composites, titanium and CoCr, as well as glass-ceramics and lithium disilicate for wet processes. The machine is suited for dental laboratories producing crowns, bridges, abutments and bars.

Key benefits

• Stainless steel monocoque frame for high rigidity and stability during milling.
• Integrated spindle suction nozzle for chip extraction as close to the tool as possible.
• A/B axis articulation (A 360°, B ±40°) for complex geometries and undercuts.
• Spindle-integrated air and liquid nozzles ensure controlled cooling and tool lubrication in wet and dry modes.
• Starter kit of tools included to accelerate initial production setup.
• Intuitive DF Panel interface for streamlined workflows and job management.

Technical information
Number of axes: 5
Working range A axis: 360°
Working range B axis: ±40°
Frame: Stainless steel monocoque chamber
Spindle speed: 60,000 rpm
Spindle power: 2.2 kW
Milling modes: Wet or Dry
Tool magazine capacity: Automatic, 22 positions
Interface: DF Panel
Power supply: 230 V
Air pressure: 7 bar - 100 l/min
Dimensions (W x H x D): 650 x 830 x 720 mm
Weight: 180 kg
Supported materials: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, titanium premilled abutments

Specifications

• Axes: 5
• Spindle power: 2.2 kW
• Spindle speed: 60,000 rpm
• Milling modes: Wet and Dry
• Tool magazine: 22 positions (automatic)
• Working ranges: A axis 360°, B axis ±40°
• Frame: Stainless steel monocoque
• Interface: DF Panel
• Power: 230 V
• Air pressure requirement: 7 bar - 100 l/min
• Dimensions (W x H x D): 650 x 830 x 720 mm
• Weight: 180 kg
• Supported materials: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, titanium premilled abutments
