CAD/CAM milling machine CC FORCE+

for dental laboratoriesfor ceramicsfor zirconia

Product overview

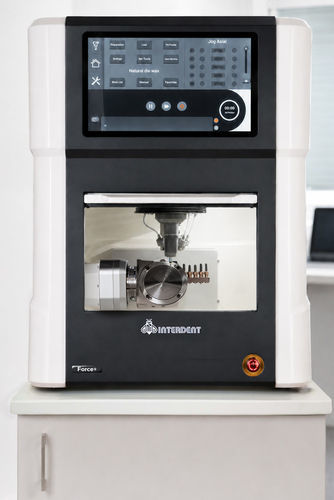

The Interdent CC FORCE+ is a 5-axis dental milling machine designed for wet and dry milling of discs and blocks. Equipped with a 3.0 kW spindle (60,000 rpm) and a 22-position automatic tool magazine, it supports high-speed, continuous production in dental laboratories and production centers.

Advantages

• Stainless steel monocoque chamber frame for high rigidity and stability.
• Integrated spindle suction nozzle for optimal chip extraction as close to the tool as possible.
• Spindle-integrated air and liquid nozzles for consistent cooling and lubrication during machining.
• A/B axis kinematics (360° A axis / ±40° B axis) for complex geometries and undercuts.
• “Zero clamping” pneumatic disc release system for seamless interruption and resumption of jobs.
• Starter kit of tools and an intuitive DF Panel interface to speed up laboratory workflows.

Technical information
Number of axes: 5
Working area, A axis: 360°
Working area, B axis: ± 40°
Construction: Stainless steel monocoque chamber frame
Motor speed: 60,000 rpm
Motor power: 3.0 kW
Milling options: Wet or Dry
Capacity of end mills: Automatic with 22 positions
Interface: DF Panel
Power supply: 230 V
Air pressure: 6 bar - 25 l/min
Dimensions (W x H x D): 650 x 830 x 720 mm
Weight: 180 kg
Materials processed: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, titanium premilled abutments

Connected products

• Accessories for Force line
• CC FORCE
• CC FORCE PRO

Packaging & reference

• Brand: Interdent
• Commercial name: CC FORCE+
• Item code: 542
• Packaging: 1 piece per package
• Available images: CC-Force_b.jpg, CC-Force_m.jpg, CC-Force_s.jpg
