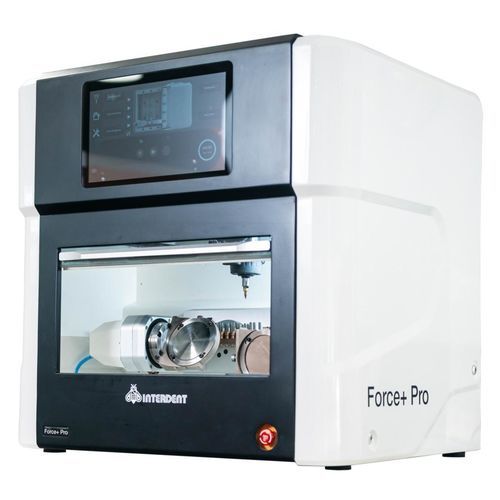

CAD/CAM milling machine CC Force+ Pro

dentalzirconiafor CoCr alloys

Overview
5-axis dental milling unit for wet and dry milling of discs and blocks. The CC FORCE+ PRO includes an automatic disc changer for continuous operation and a 3.0 kW spindle with a maximum speed of 60,000 rpm. Compatible with zirconia, PEEK, PMMA, composites, titanium, CoCr, glass and hybrid ceramics, lithium disilicate and titanium premilled abutments.

Advantages

• Stainless steel monocoque frame providing structural rigidity.
• Spindle-integrated suction nozzle for chip extraction close to the cutting tool.
• A and B axis kinematics for complex geometries and undercuts.
• Integrated air and liquid nozzles in the spindle for controlled cooling and lubrication (wet and dry modes).
• Starter kit of tools included for immediate setup.
• Four-position automatic disc changer enabling up to 48 hours of unattended milling.
• DF Panel user interface for efficient workflow management.

Technical information
Axes: 5
A axis working range: 360°
B axis working range: ± 40°
Construction: Stainless steel monocoque chamber frame
Spindle speed: 60,000 rpm
Spindle power: 3.0 kW
Milling modes: Wet or Dry
Tool magazine capacity: Automatic 22 positions
Interface: DF Panel
Power supply: 230 V
Air pressure: 6 bar - 25 l/min
Dimensions (W x H x D): 845 x 835 x 720 mm
Weight: 200 kg
Supported materials: Zirconia; PEEK; PMMA; Composite; Titanium; CoCr; glass ceramic; hybrid ceramic; lithium disilicate; titanium premilled abutments

Specifications

• Number of axes: 5
• A axis range: 360°
• B axis range: ± 40°
• Frame: Stainless steel monocoque
• Spindle: 60,000 rpm, 3.0 kW
• Milling: Wet and dry
• Tool magazine: Automatic, 22 positions
• Interface: DF Panel
• Electrical supply: 230 V
• Compressed air: 6 bar - 25 l/min
• Dimensions (W x H x D): 845 x 835 x 720 mm
• Weight: 200 kg
• Materials processed: Zirconia; PEEK; PMMA; Composite; Titanium; CoCr; glass ceramic; hybrid ceramic; lithium disilicate; titanium premilled abutments
