Disc mill CC FORCE

for productionfor dental laboratorieswet grinding

Description

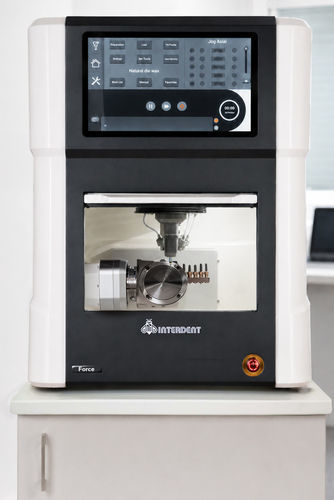

5-axis dental milling unit for wet and dry processing of discs and blocks, designed for dental laboratories and production centers. Fitted with a 2.2 kW spindle (60,000 rpm) and an automatic 22-position tool changer, it machines zirconia, lithium disilicate, glass ceramics, PEEK, PMMA, composites, titanium and CoCr, including premilled titanium abutments. The pneumatic "zero clamping" disc release system enables interrupting and resuming jobs without re-clamping, simplifying multi-material workflows.

Advantages

• Stainless steel monocoque chamber frame providing high rigidity and stability during milling.
• Integrated spindle suction nozzle for chip extraction close to the tool, improving cleanliness and tool life.
• A/B axis movements for full 5-axis access to complex anatomies.
• Spindle-integrated air and liquid nozzles delivering consistent cooling and lubrication for wet milling.
• Starter kit of tools included for initial setup and advanced machining tasks.
• DF Panel interface for intuitive control and fast workflow management.

Technical information (table)
Number of axis: 5
Working area A axis: 360°
Working area B axis: ± 40°
Construction: Stainless steel monocoque chamber frame
Motor speed: 60,000 rpm
Motor power: 2.2 kW
Milling options: Wet or Dry
Capacity of end mills: Automatic with 22 positions
Interface: DF Panel
Power supply: 230 V
Air pressure: 7 bar - 100 l/min
Dimensions W x H x D: 650 x 830 x 720 mm
Weight: 180 kg
Materials processable: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, premilled titanium abutments

Technical specifications

• Number of axis: 5
• Working area A axis: 360°
• Working area B axis: ± 40°
• Construction: Stainless steel monocoque chamber frame
• Motor speed: 60,000 rpm
• Motor power: 2.2 kW
• Milling options: Wet or Dry
• Capacity of end mills: Automatic with 22 positions
• Interface: DF Panel
• Power supply: 230 V
• Air pressure: 7 bar - 100 l/min
• Dimensions (W x H x D): 650 x 830 x 720 mm
• Weight: 180 kg
• Materials processable: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, premilled titanium abutments
