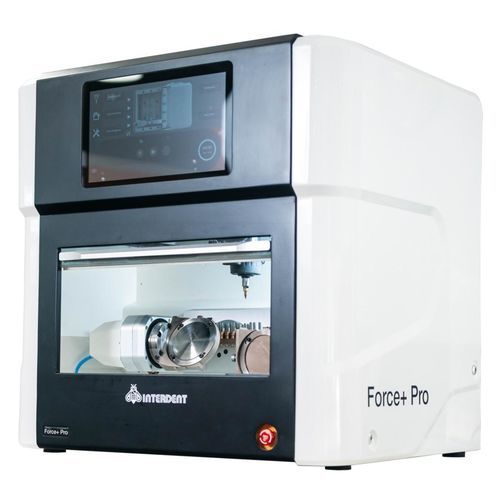

CAD/CAM milling machine CC Force+ Pro

dentalfor dental laboratoriesfor dental prostheses

Brand
Interdent

Product overview
The CC FORCE+ PRO is a 5-axis dental milling unit designed for wet and dry milling of discs and blocks. It integrates an automatic four-position disc changer for extended unattended operation and a 3.0 kW spindle to process a wide range of dental materials. Suitable for dental laboratories producing restorations, abutments and hybrid components.

Highlights

• Automatic four-position disc changer enabling extended unattended milling (up to 48 hours)
• "Zero clamping" pneumatic disc release system allowing job interruption, support/material change and resume without compromising accuracy
• Ultra-rigid monocoque stainless steel chamber frame for high machining speed, performance and repeatability
• Capable of wet or dry milling; 22-position automatic tool changer

Technical information

• Axes: 5
• A axis travel: 360°
• B axis travel: ± 40°
• Construction: Stainless steel monocoque chamber frame
• Spindle speed: 60,000 rpm
• Spindle power: 3.0 kW
• Milling modes: Wet or dry
• Tool capacity: Automatic, 22 positions
• Interface: DF Panel
• Power supply: 230 V
• Air pressure: 6 bar - 25 l/min
• Dimensions W x H x D: 845 x 835 x 720 mm
• Weight: 200 kg

Compatible materials

• Zirconia
• PEEK
• PMMA
• Composite
• Titanium
• CoCr
• Glass ceramic
• Hybrid ceramic
• Lithium disilicate
• Titanium premilled abutments

Packaging & related products

• Packaging: 1 piece
• Related products: CC FORCE, CC FORCE PRO, CC FORCE+
