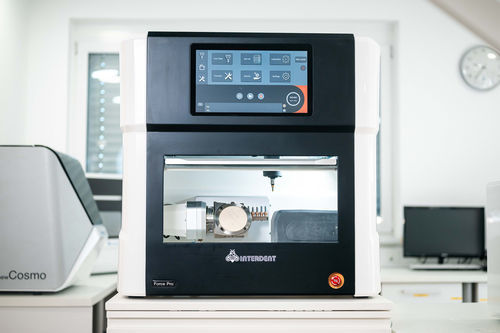

CAD/CAM milling machine CC FORCE PROdentalfor dental laboratoriesfor dental clinics
Add to favorites
Compare this product
Characteristics
- Type
- CAD/CAM
- Applications
- dental, for dental laboratories, for dental clinics, for dental prostheses
- Designed for
- for zirconia, ZrO2, for dental composites, for titanium, for cobalt-chromium, for resin, for PMMA
- Number of axes
- 5-axis
- Number of spindles
- single-spindle
- Machining type
- wet machining, dry machining
- Configuration
- floor-standing
- Other characteristics
- with tool management, computer-controlled, with integrated software, with stock management
- Spindle speed
60,000 rpm
(376,991 rad.min-1)- Power
2,200 W
- Length
84.5 cm
(33.27 in)- Height
83.5 cm
(32.87 in)- Depth
72 cm
(28.35 in)- Weight
190 kg
(418.88 lb)
Description
Description
5-axis dental milling unit designed for wet and dry milling of discs and blocks. Equipped with a 60,000 rpm, 2.2 kW spindle and an automatic disc changer for extended unattended operation. The pneumatic "zero clamping" disc release system allows pausing and resuming jobs without re-clamping, preserving accuracy. The CC FORCE PRO is suitable for soft materials while retaining the capability to mill metals (titanium, CoCr) and wet-milled glass-ceramics and lithium disilicate. The CC FORCE PRO+ option adds a four-position disk changer for up to 48 hours of continuous milling.
Technical information
Features / technical specifications
5-axis dental milling unit designed for wet and dry milling of discs and blocks. Equipped with a 60,000 rpm, 2.2 kW spindle and an automatic disc changer for extended unattended operation. The pneumatic "zero clamping" disc release system allows pausing and resuming jobs without re-clamping, preserving accuracy. The CC FORCE PRO is suitable for soft materials while retaining the capability to mill metals (titanium, CoCr) and wet-milled glass-ceramics and lithium disilicate. The CC FORCE PRO+ option adds a four-position disk changer for up to 48 hours of continuous milling.
Technical information
- Number of axes: 5
- Working area A axis: 360°
- Working area B axis: ± 40°
- Construction: Stainless steel monocoque chamber frame
- Motor speed: 60,000 rpm
- Motor power: 2.2 kW
- Milling options: Wet or Dry
- Capacity of end mills: Automatic with 22 positions
- Interface: DF Panel
- Power supply: 230 V
- Air pressure: 7 bar - 100 l/min
- Dimensions W x H x D: 845 x 835 x 720 mm
- Weight: 190 kg
- Manufacturer: Interdent
Features / technical specifications
- Materials supported: Zirconia; PEEK; PMMA; Composite; Titanium; CoCr; glass ceramic; hybrid ceramic; lithium disilicate; titanium premilled abutments
- Automatic disc changer for continuous operation
- "Zero clamping" pneumatic disc release system for seamless job interruption
- CC FORCE PRO+ option: four-position disk changer enabling up to 48 hours unattended milling
- Automatic tool changer with 22 positions
