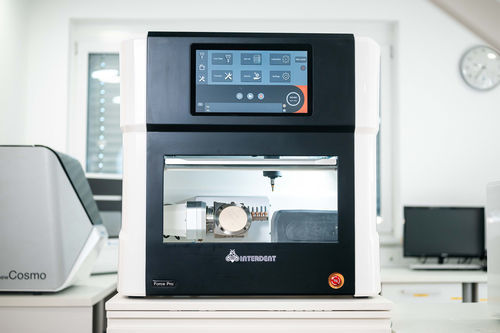

CAD/CAM milling machine CC FORCE PRO

for dental laboratoriesdentalfor dental prostheses

DescriptionCC FORCE PRO is a 5-axis dental milling unit for wet and dry milling of discs and blocks, equipped with a 2.2 kW spindle and a 22-position automatic tool changer. Designed to process a wide range of dental materials — from PMMA and zirconia to titanium and glass ceramics — it combines automated loading, precise A/B axis kinematics and integrated chip extraction for continuous laboratory production.

Advantages

• Stainless steel monocoque frame for structural rigidity and stable machining.
• Integrated spindle suction nozzle for chip extraction as close to the tool as possible, improving surface finish and reducing cleaning cycles.
• A/B axis movements for complex geometries and undercut-compatible milling.
• Spindle-integrated air and liquid nozzles for consistent cooling and lubrication during wet milling.
• Starter kit of milling tools included to accelerate setup and first runs.
• Automatic disc changer (4 positions) and a DF Panel interface for unattended, efficient workflows up to 48 hours.

Technical informationNumber of axes: 5
Working area A axis: 360°
Working area B axis: ±40°
Construction: Stainless steel monocoque chamber frame
Spindle speed: 60,000 rpm
Spindle power: 2.2 kW
Milling options: Wet or Dry
End mill capacity: Automatic tool changer, 22 positions
Interface: DF Panel
Power supply: 230 V
Air pressure: 7 bar - 100 l/min
Dimensions W x H x D: 845 x 835 x 720 mm
Weight: 190 kg
Compatible materials: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, titanium premilled abutments

Specifications

• Axes: 5
• A axis working range: 360°
• B axis working range: ±40°
• Spindle speed: 60,000 rpm
• Spindle power: 2.2 kW
• Milling modes: Wet and Dry
• End mill capacity: Automatic tool changer, 22 positions
• Interface: DF Panel
• Electrical supply: 230 V
• Air requirement: 7 bar, 100 l/min
• Dimensions (W×H×D): 845 × 835 × 720 mm
• Weight: 190 kg
• Compatible materials: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, titanium premilled abutments
