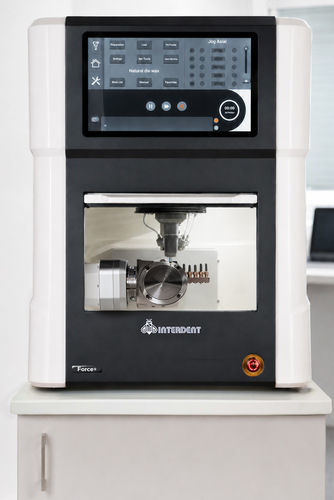

CAD/CAM milling machine CC FORCE+
for dental laboratoriesfor zirconiafor CoCr alloys

CAD/CAM milling machine - CC FORCE+ - Interdent - for dental laboratories / for zirconia / for CoCr alloys
CAD/CAM milling machine - CC FORCE+ - Interdent - for dental laboratories / for zirconia / for CoCr alloys
Add to favorites
Compare this product
Go to the Interdent website for more information

Characteristics

Type
CAD/CAM
Applications
for dental laboratories
Designed for
for zirconia, for dental composites, for titanium, for CoCr alloys, for PMMA
Number of axes
5-axis
Number of spindles
1-spindle
Machining type
wet machining, dry machining
Configuration
floor-standing
Other characteristics
with tool management, computer-controlled, with integrated software
Spindle speed

6,000 rpm
(37,699 rad.min-1)

Power

3,000 W

Length

65 cm
(25.59 in)

Height

83 cm
(32.68 in)

Depth

72 cm
(28.35 in)

Weight

180 kg
(396.83 lb)

Description

Description
The 5-axis milling unit is engineered for wet and dry milling of discs and blocks used in dental laboratories. Equipped with a 3.0 kW spindle running at 60,000 rpm and a stainless steel monocoque frame, the CC FORCE+ combines high-speed capability with structural rigidity for continuous production.
The unit supports rapid job changes and mixed-material workflows. A pneumatic zero-clamping disc release system allows interruption and resumption of operations without compromising alignment, enabling efficient handling of different supports and materials.

Advantages
  • Stainless steel monocoque frame for maximum rigidity and stability.
  • Integrated spindle suction nozzle for optimal chip extraction at the tool tip.
  • Spindle-integrated air and liquid nozzles for consistent cooling and tool lubrication.
  • A/B axis movements for full five-axis machining flexibility.
  • Starter kit of tools included for advanced milling tasks.
  • User-friendly interface (DF Panel) for fast workflow management.


Technical information
Number of axes: 5
Working area A axis: 360°
Working area B axis: ± 40°
Construction: Stainless steel monocoque chamber frame
Motor speed: 60,000 rpm
Motor power: 3.0 kW
Milling options: Wet or Dry
Capacity of end mills: Automatic with 22 positions
Interface: DF Panel
Power supply: 230 V
Air pressure: 6 bar - 25 l/min
Dimensions W x H x D: 650 x 830 x 720 mm
Weight: 180 kg
Material: Zirconia, PEEK, PMMA, Composite, Titanium, CoCr, glass ceramic, hybrid ceramic, lithium disilicate, titanium premilled abutments

Technical specifications
  • Number of axes: 5
  • Working area A axis: 360°
  • Working area B axis: ± 40°
  • Construction: Stainless steel monocoque chamber frame
  • Motor speed: 60,000 rpm
  • Motor power: 3.0 kW
  • Milling options: Wet or Dry
  • Capacity of end mills: Automatic with 22 positions
  • Interface: DF Panel
  • Power supply: 230 V
  • Air pressure: 6 bar - 25 l/min
  • Dimensions W x H x D: 650 x 830 x 720 mm
  • Weight: 180 kg
  • Materials supported: Zirconia; PEEK; PMMA; Composite; Titanium; CoCr; glass ceramic; hybrid ceramic; lithium disilicate; titanium premilled abutments
