Mobile surgical light Woosn800M

LEDfor operating roomsmedical

Product name
Woosn800M LED Surgical Lamp

Short highlights

• Ultra-thin lamp head
• LCD touch control
• Central R9 red ring

Core Selling Points

• Ultra-thin full-aluminum lamp head, durable with efficient heat dissipation
• LCD touch control for intuitive operation
• Central R9 red ring design for enhanced red rendering
• Imported German Osram LEDs for long service life
• High color rendering for accurate tissue visualization

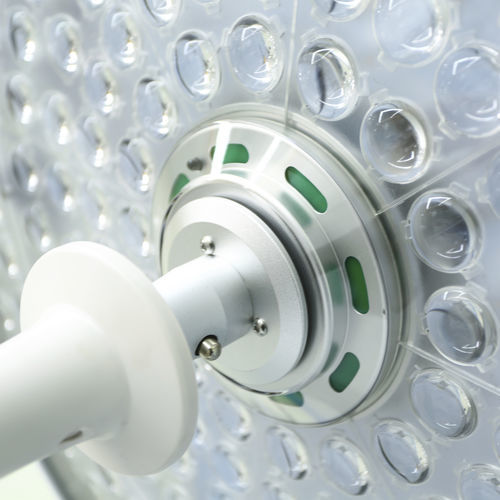

• Manual focus via central handle for precise adjustment
• Low heat generation for patient and staff safety
• Wide voltage AC100–240V for global use
• Flexible double-section arm for large operating range
• 2-year warranty

Technical Parameters

• Model: Woosn800M
• Appearance: Ultra-thin lamp head
• Control: LCD touch panel
• Feature: Central R9 red ring
• Housing: Full aluminum
• Lamp head thickness: ≤6 cm
• Lamp head diameter: 500 mm
• Light source: LED, lifespan ≥60,000 hrs
• LED manufacturer: Osram (imported)
• LED quantity: 96 pcs
• Optics: Individual lens above each LED
• Illuminance: 40,000–160,000 Lux, 20-step adjustable
• Lighting focus: 160–350 mm, manual adjustable via central handle
• Color temperature: 3800K–5500K, 5-step adjustable
• Color rendering index Ra: ≥97
• R9/R13/R15: ≥95
• Lighting depth (L1+L2): ≥1380 mm
• Area temperature rise: <0.5℃
• Power consumption: 100 W
• Power input: AC100–240V 50/60Hz, switching power supply
• Arm reach: 800 + 900 mm
• Warranty: 2 years

Product Features

• Ultra-thin full-aluminum lamp head with high strength and efficient heat dissipation
• Intuitive LCD touch control panel
• Central R9 red ring for accurate blood and tissue color rendering
• Imported Osram LED chips for stable performance
• Individual optics per LED for uniform light field
• 20-level brightness adjustment to match different procedures
• Manual central-handle focusing for stable, precise spot size
• 5-level color temperature adjustment to suit clinical needs
• High CRI for true tissue coloration
• Deep illumination depth suitable for deep cavity operations
• Low area temperature rise to protect patient and staff
• Energy-efficient design with low power consumption
• Wide voltage compatibility for global operation
• Flexible double-section arm for wide manoeuvrability
• 2-year warranty and after-sales support

Application
Designed for operating rooms and medical institutions as the primary illumination source during surgical procedures.

Technical specifications

• Model: Woosn800M
• Lamp head diameter: 500 mm
• Lamp head thickness: ≤6 cm
• LEDs: 96 pcs, Osram (imported)
• Lifespan: ≥60,000 hrs
• Illuminance: 40,000–160,000 Lux (20 steps)
• Color temperature: 3800K–5500K (5 steps)
• Color Rendering Index (Ra): ≥97; R9/R13/R15 ≥95
• Lighting focus: 160–350 mm (manual)
• Lighting depth (L1+L2): ≥1380 mm
• Area temperature rise: <0.5℃
• Power consumption: 100 W
• Power input: AC100–240V 50/60Hz
• Arm reach: 800 + 900 mm
• Housing: Full aluminum; ultra-thin design
• Control: LCD touch panel
• Warranty: 2 years
