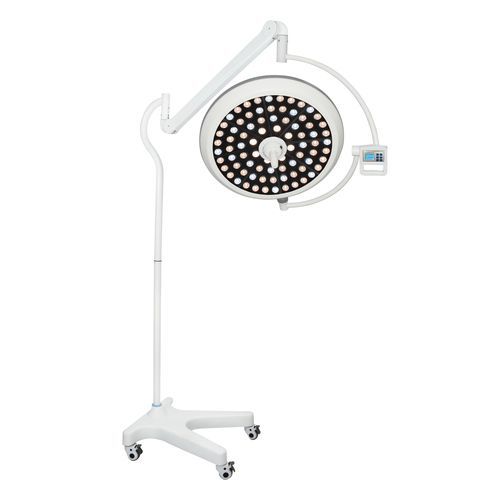

Mobile surgical light FY-700BS

LEDfor operating rooms95

Product
FY-700BS mobile single-head floor-standing LED surgical lamp. 700mm lamp head with aluminum alloy housing, manual focus and adjustable illuminance and color temperature, designed for use in operating rooms and between wards.

Main Features

• Mobile stand design for easy transfer between wards and operating rooms
• Standard 700mm lamp head, head thickness ≤15cm, aluminum alloy housing
• Manual focus via center rotary handle; adjustable brightness and color temperature
• Low surgical field temperature rise <1℃ to avoid thermal injury to tissues

Technical Data
Model: FY-700BS (Mobile Type)
Structure: Single head mobile floor stand
Lamp Housing: Aluminum Alloy
Head Thickness: ≤15cm
Head Diameter: 700mm
Horizontal Arm Span: 800+900+700mm
Light Source: LED, lifespan ≥80,000 hrs
LED Quantity: 80 pcs
Illuminance: 40,000–160,000 Lux adjustable
Focus Range: 120–300mm manual adjust
Color Temperature: 3700K–5000K adjustable
Ra: 85–95
Lighting Depth: 500–1800mm
Surface Temperature Rise: <1℃
Power: 80W
Input: AC100–240V 50/60Hz (switching power supply)
Warranty: 2 years

Characteristics / technical specifications

• Model: FY-700BS (Mobile Type)
• Structure: Single head mobile floor stand
• Lamp housing: Aluminum alloy; head thickness ≤15cm; head diameter 700mm
• Arm span: 800+900+700mm
• Light source: LED (≥80,000 hrs), 80 LEDs
• Illuminance: 40,000–160,000 Lux (adjustable)
• Focus: Manual 120–300mm; lighting depth 500–1800mm
• Color temperature: 3700K–5000K (adjustable); Ra 85–95
• Power: 80W; Input AC100–240V 50/60Hz (switching PSU)
• Surface temperature rise <1℃; Warranty 2 years
