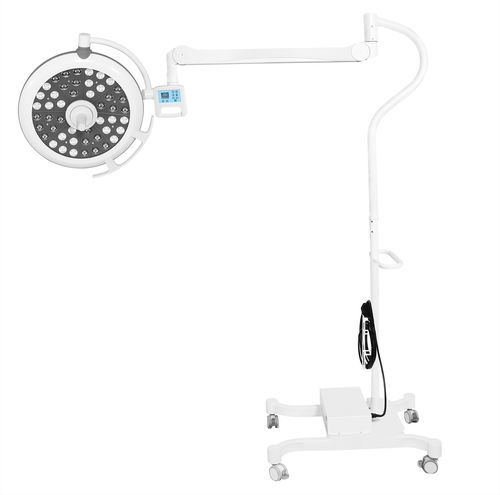

Mobile surgical light FY-LED500S

LEDfor operating rooms97

Overview
The FY-LED500S is a mobile floor-standing single-dome LED surgical light designed for general surgery, plastic surgery and outpatient procedures. It combines independent lens optics and a low-temperature LED source to minimize shadows and reduce wound heating, providing consistent illumination for precise clinical work.

Key Features

• Smart Touch control panel for intuitive operation
• Manual focus adjustment via central handle (120–300 mm)
• R9 (red) and R11 (green) auxiliary lights, each 4-step adjustable
• Adjustable illuminance: 40,000–160,000 Lux
• Tunable color temperature: 3700K–5000K
• High color rendering: Ra > 97 for accurate tissue color
• Ultra-wide 360° unlimited rotation for flexible positioning
• Low local temperature rise < 1°C to protect patient tissues
• Slim aluminum-alloy lamp head, thickness ≤ 9.5 cm
• LED lifetime ≥ 80,000 hours
• Total power consumption: 54 W; Power input: AC 100–240 V, 50/60 Hz (switching PSU)

Technical Specifications
Control Type — Smart Touch Control
Focus Adjustment — Manual tuning by central handle, 120–300 mm
Lamp Head Material — Aluminum alloy
Lamp Head Thickness — ≤ 9.5 cm
Lamp Head Diameter — 500 mm
LED Quantity — 60 pcs with individual optical lens
Brightness — 40,000–160,000 Lux adjustable
Color Temperature — 3700K–5000K adjustable
Color Rendering Index — Ra > 97
Lighting Depth — 500–1800 mm
Local Temperature Rise — < 1°C
R9 / R11 Light — R9 (red) & R11 (green), 4-step adjustable each
Total Power — 54 W
Power Input — AC 100–240 V, 50/60 Hz (switching power supply)
Horizontal Arm Reach — 800 + 900 + 500 mm
Rotation — 360° unlimited
LED Lifetime — ≥ 80,000 hours
Warranty — 2 years

Model & Specifications

• Model: FY-LED500S
• Lamp head diameter: 500 mm
• Lamp head thickness: ≤ 9.5 cm
• LED count: 60 pcs (individual optical lenses)
• Illuminance: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700K–5000K (adjustable)
• Color rendering index: Ra > 97
• Focus adjustment range: 120–300 mm (manual central handle)
• Lighting depth: 500–1800 mm
• Local temperature rise: < 1°C
• Additional lights: R9 (red) and R11 (green), each 4-step adjustable
• Total power consumption: 54 W
• Power input: AC 100–240 V, 50/60 Hz (switching power supply)
• Horizontal arm reach: 800 + 900 + 500 mm
• Rotation: 360° unlimited
• Material: Aluminum alloy lamp head
• LED lifetime: ≥ 80,000 hours
• Warranty: 2 years
