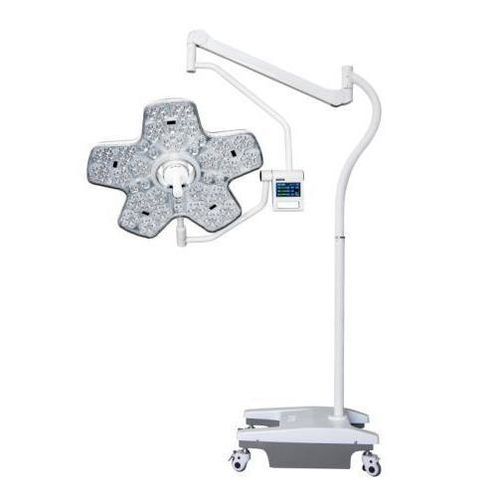

Mobile surgical light FY-720S

LED2-arm220V / 50Hz

Product name
FY-720S Mobile LED Surgical Lamp. Mobile Surgical Light | Intelligent & High-performance.

Core Advantages

• Automatic shadow compensation for steady illumination
• 6-piece lens assembly for superior optical performance
• Smart touch control for easy operation
• Imported German Osram LEDs with long service life
• Outstanding color rendering for true tissue color reproduction
• Dual focus adjustment modes for flexible use
• Low heat generation, safe for clinical environment
• Mobile design, easy to move and deploy
• 2-year warranty

Technical Parameters

• Model: 720S Mobile
• Key Features: Automatic Shadow Compensation, 6 Lens Unit, Smart Touch Control
• Lamp Head Diameter: 720 mm
• Light Source: LED, Service Life ≥60,000 hrs
• LED Chip: Imported from German Osram
• LED Quantity: 140 pcs
• Optical Lens: 6 Units
• Brightness: 40,000–160,000 Lux, 10-level adjustable
• Focus Range: 120–350 mm, adjustable via touch control or handle
• Color Temperature: 3000K–5000K, 5-level adjustable
• Color Rendering Index Ra: ≥97
• R9 / R13 / R15: ≥95
• Lighting Depth (L1 + L2): ≥1500 mm
• Surface Temperature Rise: <0.5 ℃
• Power Consumption: 100 VA
• Power Supply: AC 100–240 V 50/60 Hz, switching power supply
• Control System: Smart Touch Control
• Central Handle: Detachable; extra touch control ring optional
• Arm Reach: 800 + 900 mm
• Warranty: 2 Years

Product Features

• Built-in shadow compensation function keeps the surgical field evenly lit
• Professional 6-lens system delivers uniform and concentrated light
• Sensitive smart touch control, simple to operate
• Premium imported Osram LEDs ensure stable performance and long lifespan
• Adjustable brightness and color temperature to fit various surgical scenarios
• Two focus adjustment methods available for greater convenience
• High color rendering index accurately restores tissue colors
• Ultra-long lighting depth, ideal for deep surgical operations
• Minimal temperature rise, no risk of heat injury
• Wide voltage compatibility, applicable worldwide
• Detachable central handle, optional touch control ring for diverse operation
• Extended combined arm offers large moving range and precise positioning
• Mobile structure, convenient to transfer between rooms

Application
Professional lighting equipment for surgical procedures in medical facilities.

Specifications

• Model: 720S Mobile
• Lamp Head Diameter: 720 mm
• LED Quantity: 140 pcs
• LED Chip: Imported German Osram
• Light Source Service Life: ≥60,000 hrs
• Brightness: 40,000–160,000 Lux (10 levels)
• Focus Range: 120–350 mm (touch control or handle)
• Color Temperature: 3000K–5000K (5 levels)
• Color Rendering Index Ra: ≥97 (R9/R13/R15 ≥95)
• Lighting Depth (L1+L2): ≥1500 mm
• Surface Temperature Rise: <0.5 ℃
• Power Consumption: 100 VA
• Power Supply: AC100–240V 50/60Hz
• Control System: Smart Touch Control
• Central Handle: Detachable; optional touch control ring
• Arm Reach: 800 + 900 mm
• Warranty: 2 Years
