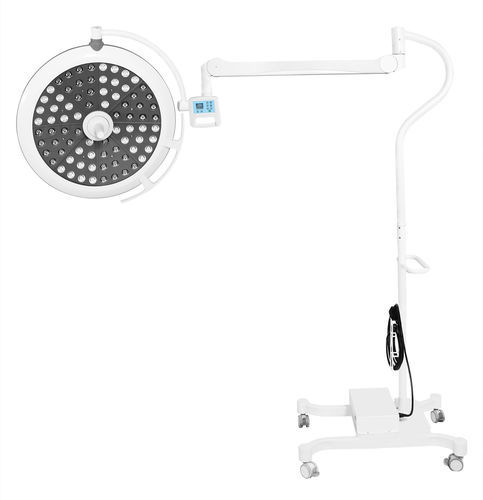

Mobile surgical light FY-LED700S

LEDfor operating rooms97

Product
FY-LED700S mobile floor-standing LED shadowless surgical lamp with independent optical lens design, smart touch control and manual focusing for precise illumination of the surgical field.

Key Features

• Independent optical lens above each LED for uniform light convergence and effective shadow elimination
• Adjustable special spectrum: R9 (red) and R11 (green) each 4-level adjustable for improved blood and soft tissue color rendering; Ra >97
• 360° unlimited lamp head rotation for flexible multi-angle positioning
• Smart touch screen control for brightness, color temperature and spectrum parameter settings
• Aluminum alloy lamp head, ultra-slim thickness ≤9.5 cm for easy disinfection and laminar flow compatibility
• Manual focusing via central rotary handle to adjust spot size (120–300 mm)
• Ultra-low surgical field temperature rise <1°C to reduce wound dehydration and thermal injury
• Mobile base with rolling casters for transfer between operating room, outpatient and emergency areas
• Stepless brightness adjustment from 40,000 to 160,000 Lux

Technical Specifications (table)
Item: Parameter
Model: FY-LED700S, Mobile Floor Type
Control Mode: Smart Touch Control
Lamp Head Material: Aluminum Alloy
Lamp Head Thickness: ≤9.5cm
Lamp Head Diameter: 700mm
Horizontal Arm Reach: 800+900+700mm
Light Source: LED, Lifespan ≥80,000 hrs
LED Quantity: 80 pcs
Optical Design: Independent optical lens above every LED bead
Special Spectrum: R9 red light 4-step adjustable; R11 green light 4-step adjustable
Lamp Head Rotation: 360° unlimited rotation
Brightness: 40,000–160,000 Lux, stepless adjustable
Focus Range: 120–300 mm, manual adjustable
Color Temperature: 3700K–5000K, adjustable
Ra Index: >97
Lighting Depth: 500–1800 mm
Surgical Field Temp Rise: <1°C
Rated Power: 84W
Input Voltage: AC100–240V 50/60Hz
Warranty: 2 Years

Technical specifications

• Model: FY-LED700S
• Control Mode: Smart Touch Control
• Lamp Head Material: Aluminum Alloy
• Lamp Head Thickness: ≤9.5cm
• Lamp Head Diameter: 700mm
• Horizontal Arm Reach: 800+900+700mm
• Light Source: LED; Lifespan ≥80,000 hrs
• LED Quantity: 80 pcs
• Optical Design: Independent optical lens above each LED bead
• Special Spectrum: R9 (red) 4-step adjustable; R11 (green) 4-step adjustable
• Lamp Head Rotation: 360° unlimited
• Brightness: 40,000–160,000 Lux (stepless)
• Focus Range: 120–300 mm (manual)
• Color Temperature: 3700K–5000K (adjustable)
• Color Rendering Index (Ra): >97
• Lighting Depth: 500–1800 mm
• Surgical Field Temperature Rise: <1°C
• Rated Power: 84W
• Input Voltage: AC100–240V 50/60Hz
• Warranty: 2 Years
