Mobile surgical light FY-500BS

LEDminor surgery95

Product Overview

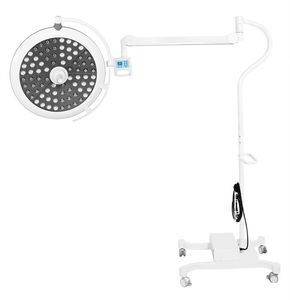

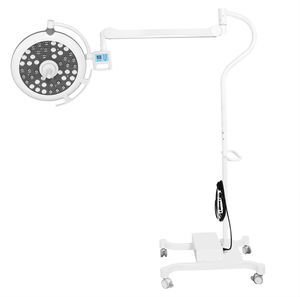

The FY-500BS Mobile Single-head LED Surgical Lamp is a cost-efficient, mobile surgical light on a floor stand with casters, designed for flexible use in examination rooms, outpatient clinics and minor operating procedures. The lamp features a standard 500mm lamp head with aluminum-alloy housing, delivering stable, shadow-reduced illumination and precise manual focus control.

Key Features

• Mobile floor-standing design with rolling casters for easy relocation between clinical areas
• Standard single lamp head, thickness ≤15 cm, durable aluminum alloy housing
• Manual focus adjustment via central rotating handle for precise beam diameter control
• Adjustable brightness and color temperature (3700K–5000K) to match clinical needs
• Ultra-low operative field temperature rise <1℃ to minimise tissue heating
• Long-life LED source with ≥80,000 working hours for reduced maintenance

Technical Specifications
Model — FY-500BS (Mobile Type)
Structure — Single Regular Lamp Head, Mobile Floor Stand
Housing Material — Aluminum Alloy
Lamp Head Thickness — ≤15cm
Lamp Head Diameter — 500mm
Horizontal Lamp Head Reach — 800+900+500mm
Light Source — LED, Lifespan ≥80,000hrs
LED Bulb Quantity — 40 pcs
Brightness — 40,000–160,000 Lux, adjustable
Focus Range — 120–300mm, manually adjustable
Color Temperature — 3700K–5000K, adjustable
Ra Index — 85–95
Lighting Depth — 500–1800mm
Area Temperature Rise — <1℃
Power Consumption — 40W
Power Input — AC100–240V 50/60Hz, switching power supply
Warranty — 2 Years

Specifications

• Model: FY-500BS
• Lamp head diameter: 500 mm
• Brightness: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700K–5000K (adjustable)
• LED lifespan: ≥80,000 hours
• Power input: AC100–240V 50/60Hz
• Warranty: 2 Years
