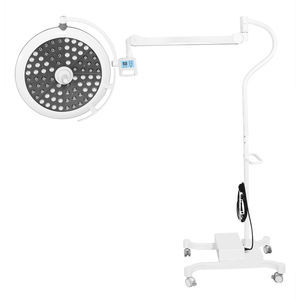

Mobile surgical light FY-5AS

LEDfor operating rooms95

Overview
The FY-5AS LED surgical light is a mobile, floor-standing illumination unit designed for operating rooms. It features a focustable-petal lamp head with an independent grip on each petal and an optimized lamp control system to provide stable, uniform lighting with low heat emission. Intended for general, plastic and outpatient surgical procedures, it offers adjustable focus, color temperature and intensity for precise intraoperative lighting.

Key Features

• Focustable-petal lamp head with independent grip on each petal for targeted adjustment
• Manual central-handle focus adjustment (120–300 mm)
• 65 high-quality LEDs, lifespan ≥80,000 hours
• Adjustable brightness 40,000–160,000 Lux and color temperature 3700–5000 K
• High color rendering (Ra 85–97) for accurate tissue visualization
• Ultra-deep lighting depth 500–1800 mm with area temperature rise <1°C
• ABS housing, lamp head thickness ≤10 cm and 720 mm diameter
• Mobile floor-standing design for flexible positioning; power input AC100–240V 50/60Hz

Technical Specifications

• Model: FY-5AS
• Lamp head diameter: 720 mm
• LED bulbs: 65 pcs (Lifespan ≥80,000 hours)
• Brightness: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700–5000 K (adjustable)
• Color rendering index (Ra): 85–97
• Lighting depth: 500–1800 mm
• Focus adjustment range: 120–300 mm (manual)
• Lamp head thickness: ≤10 cm
• Power consumption: 65 W; Power input: AC100–240V 50/60Hz
• Area temperature rise: <1°C
• Installation: Mobile / Floor-standing
• Warranty: 2 years

Suitable Procedures and Use

• General surgery, plastic surgery and outpatient clinic procedures
• Provides precise shadow control and color fidelity for tissue assessment
• Designed for easy repositioning and sterile handling via central handle
