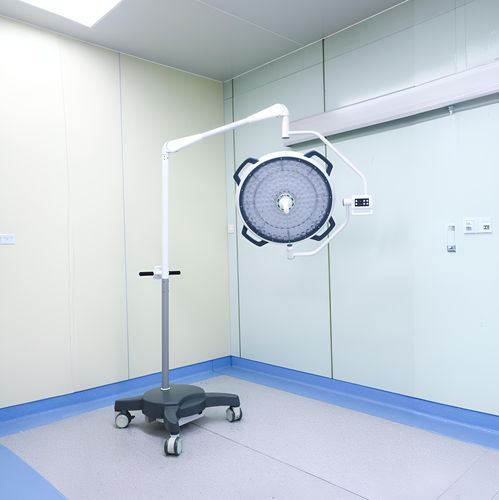

LED surgical light Woosn900M

for operating rooms2-arm97

Product overview

• Woosn900M LED surgical lamp for operating theatre illumination with ultra-thin full-aluminum head and LCD touch control.
• Central R9 red ring optical design for accurate tissue color rendering.
• Imported Osram LEDs, long life and stable output.

Core highlights

• Ultra-thin full-aluminum lamp head for improved heat dissipation
• LCD touch control panel for intuitive operation
• Central R9 RED RING professional optical module
• Imported German Osram LEDs, lifespan ≥60,000 hrs
• High color rendering (Ra ≥97) and R9/R13/R15 ≥95
• Manual central-handle focus, precise adjustment (160–350 mm)
• Low area temperature rise (<0.5℃), safe for patient and staff
• Wide voltage input (AC100–240V 50/60Hz) for global use
• Flexible double-section arm with wide positioning range (800+900 mm)
• 2-year warranty

Technical Parameters

• Model: Woosn900M
• Appearance: Ultra-thin lamp head
• Control: LCD touch control
• Feature: Central R9 RED RING
• Lamp head housing: Full aluminum
• Lamp head thickness: ≤6 cm
• Lamp head diameter: 700 mm
• Light source: LED, lifespan ≥60,000 hrs
• LED bulb: Imported German Osram, 176 pcs
• Optical lens: Individual lens for each LED
• Brightness: 40,000–160,000 Lux, 20-step adjustable
• Lighting focus: 160–350 mm, manual adjustable by central handle
• Color temperature: 3800K–5500K, 5-step adjustable
• Ra index: ≥97; R9/R13/R15: ≥95
• Lighting depth (L1+L2): ≥1380 mm
• Area temperature rise: <0.5℃
• Power consumption: 150 W
• Power input: AC100–240V 50/60Hz, switching power supply
• Arm reach: 800+900 mm
• Warranty: 2 years

Product Features

• High-strength full-aluminum ultra-thin head combining durability and heat dissipation
• LCD touch panel for simple, stable control of brightness and color temperature
• Central R9 RED RING delivers enhanced red spectrum rendering for accurate tissue visualization
• Imported Osram LED beads with long service life and consistent output
• Independent optical lens per LED for a uniform, shadow-reduced spot
• 20-level brightness adjustment to match various surgical procedures
• Central-handle manual focus for precise and stable spot size
• 5-level color temperature adjustment to meet clinical needs
• Deep illumination suitable for deep cavity and complex procedures
• Low thermal output to protect patient and staff safety
• Energy-efficient design with low power consumption
• Wide-voltage compatibility for international installations
• Flexible double-section arm for broad positioning and ease of use
• 2-year warranty

Application
Designed for illumination in hospital operating theatres and clinical surgical procedures where high color fidelity, deep illumination and precise focus are required.

Technical specifications

• Model: Woosn900M
• Lamp head diameter: 700 mm
• Lamp head thickness: ≤6 cm
• Light source: LED, lifespan ≥60,000 hrs
• LED bulbs: Imported German Osram, 176 pcs
• Brightness: 40,000–160,000 Lux (20-step)
• Lighting focus: 160–350 mm (manual central handle)
• Color temperature: 3800K–5500K (5-step)
• Ra index: ≥97; R9/R13/R15: ≥95
• Lighting depth (L1+L2): ≥1380 mm
• Area temperature rise: <0.5℃
• Power consumption: 150 W
• Power input: AC100–240V 50/60Hz
• Arm reach: 800+900 mm
• Housing: Full aluminum; Appearance: Ultra-thin lamp head
• Control: LCD touch; Feature: Central R9 RED RING
• Warranty: 2 years
