Universal operating table FY600A
electrichydraulicbariatric

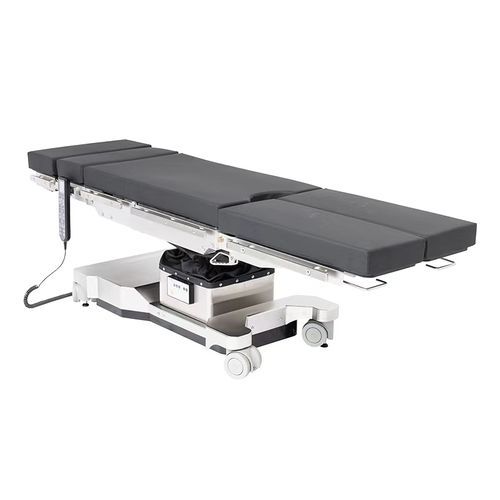

Universal operating table - FY600A - Jiangsu Fuyou Medical - electric / hydraulic / bariatric
Universal operating table - FY600A - Jiangsu Fuyou Medical - electric / hydraulic / bariatric
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications
universal
Operation
electric, hydraulic
Patient type
bariatric
Features
adjustable height, tilting, mobile, radiolucent
Total length

216 cm
(85 in)

Total width

54 cm
(21.3 in)

Max supported weight

520 kg
(1,146.4 lb)

Description

Description
Electric hydraulic operating table for a wide range of surgical procedures. Features head-to-toe interchange, multi-section tabletop and comprehensive motion control for Trendelenburg, reverse Trendelenburg, lateral tilt and longitudinal translation. Controls include handheld and column-mounted units, optional wireless controllers and foot switch. Constructed with 304 stainless steel components and available with optional X-ray compatibility and a maximum radiolucent area of 1590 mm.

Technical specifications
  • Product name: FUYOUMED FY600A Electric hydraulic operating table
  • Brand: FUYOUMED
  • Head-to-toe interchange function: Yes
  • Base housing material: 304 stainless steel
  • Wheel brake system: Four hydraulic jack columns
  • Table top frame material: 304 stainless steel
  • Central brake: Electric hydraulic
  • Overall length: 2160 mm
  • Overall width: 540 mm
  • Maximum load capacity: 520 KG
  • Safe Working Load (SWL): 275 KG
  • Main body material: 304 stainless steel
  • Height adjustment (without mattress): 540-1040 mm
  • Trendelenburg / Reverse Trendelenburg: 30°
  • Lateral tilt: 20°
  • Longitudinal translation: 320 mm (optional 350 mm)
  • Mattress / Pad thickness: 80 mm
  • Handheld controller: Yes
  • Controller display: 2.4-inch (LCD optional)
  • Column-mounted controller: Yes
  • Wireless controller: Optional (2.4" and 3.5" options)
  • Foot switch: Optional
  • Auto standby: Automatic shutdown in 70 seconds
  • Flexion / Reflexion buttons: 220° / 110°
  • Zero-position reset button: Yes
  • Interchangeable head/leg plate: Yes
  • Position memory function: 5 presets (height and sliding options available)
  • Side rail size: Majestic 28.5 × 9.5
  • X-ray compatibility: Optional
  • Maximum radiolucent area: 1590 mm
  • Head plate control: Gears and air springs
  • Head plate up/down angle: +60° - 90° (gear adjustment model)
  • Back plate control: Electric hydraulic
  • Back plate: 2 sections; up/down angle +80° - 40°
  • Kidney bridge control: Electrically optional; height adjustment 125 mm
  • Leg plate control: Manual air spring adjustment; angles 30° / -90° / 180°
  • Power supply: AC110-220V
  • Backup battery: 24V 15AH
  • Safety feature: One-click reset
  • Reverse V / Forward V position: Yes
  • Dual-layer table top: Optional
  • Caster diameter: 4 × 100 mm; 4 universal casters with rotation & directional lock
  • Manual emergency drive: Optional
  • Packing dimensions: 140 × 73 × 115 cm
  • Gross weight: 360 kg (including accessories)
