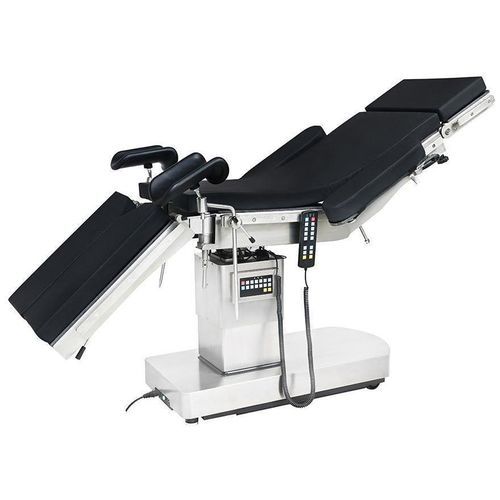

Universal operating table FY-507-E

radiologyurologyorthopedic

Overview:
Electric hydraulic operating table designed for surgical procedures requiring intraoperative imaging. Five-section tabletop and C-arm compatibility facilitate patient positioning and imaging access for general, urological and orthopedic interventions.

Key features:

• Five sections: Head section & Back section & Kidney bridge & Seat section & Leg section.
• Two independent power supplies: AC mains and internal backup battery.
• Sliding longitudinal movement compatible with C-arm imaging systems.
• Dual control: hand remote and table-mounted controller.
• Electric brake to secure the base.
• Flex and reflex functions for advanced surgical positioning.
• One-key 0 position for rapid neutral alignment.
• X-ray tunnel under the tabletop for unobstructed imaging.

Technical specifications:

• Dimensions: 2100*550mm
• Height Adjustment (electro hydraulic): 700-1050mm
• Trendelenburg (electro hydraulic): ±30°
• Lateral Tilt (electro hydraulic): ±20°
• Back Section (electro hydraulic): +85° / -40°
• Head Board (manual): +45° / -90°
• Leg Board (manual): +30° / -90°
• Table Top Longitudinal Moving (electro hydraulic): 300mm
• Build-in Kidney Elevator (manual): 0-120mm
• Flex/Reflex: 220° / 110°
• One-key 0 position
• Storage battery
• Double controller (hand remote & table mounted controller)

Clinical applications:

• General and abdominal surgery
• Orthopedics and traumatology
• Urology and lithotomy procedures
• Image-guided interventions using C-arm

Controls and safety:

• Dual power supplies with built-in backup battery
• Electric brake to lock the base
• One-key 0 position for fast patient neutralization
• Table-mounted and hand remote control for ergonomic operation

Imaging compatibility and accessories:

• X-ray tunnel and longitudinal sliding for unobstructed C-arm access
• Compatible with radiolucent accessories and standard cushions
