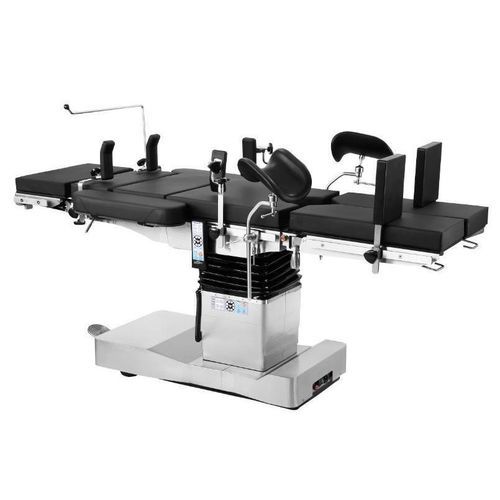

Universal operating table FYE300

gynecologicalorthopedicurology

Product
FYE300 Electric Operating Table designed for general surgical use with motorized height, tilt and longitudinal translation adjustments.

Key specifications

• Table length: ≥2040 mm
• Table width: ≥550 mm
• Minimum table height: ≤600 mm; lifting stroke: ≥330 mm
• Forward / backward tilt: ≥30° / ≥30°
• Left / right tilt: ≥25° / ≥25°
• Head section: upward fold ≥50°, downward fold ≥60°, reverse fold 50°
• Leg section: upward fold ≥20°, downward fold ≥90°, outward fold ≥90°
• Backrest: upward fold ≥80°, downward fold ≥40°
• Longitudinal translation stroke: ≥340 mm
• Power supply: 220 V, 50 Hz; power capacity: 1.0 kW

Features

• Electric drive for height, tilt and longitudinal translation to enable rapid intra-operative repositioning
• Multi-segment tabletop (head, backrest, leg sections) with wide angular ranges to support common surgical positions
• Precise position control suitable for procedures requiring Trendelenburg/reverse Trendelenburg and lithotomy adjustments

Technical specifications

• Model: FYE300 Electric Operating Table
• Overall length: ≥2040 mm
• Overall width: ≥550 mm
• Minimum height: ≤600 mm; lifting stroke: ≥330 mm
• Tilt angles: forward ≥30°, backward ≥30°; left/right ≥25°
• Section angles: head upward ≥50°, head downward ≥60°, head reverse 50°; leg upward ≥20°, leg downward ≥90°, leg outward ≥90°; backrest upward ≥80°, backrest downward ≥40°
• Longitudinal translation: ≥340 mm
• Electrical: 220 V, 50 Hz; power 1.0 kW

Applications

• General surgery
• Orthopedics and trauma
• Gynecology and urology procedures
• Procedures requiring controlled tilt and longitudinal translation

Ordering & support
Contact the supplier for optional accessories, configuration and installation. Ensure connection to local electrical standards (220 V, 50 Hz).
