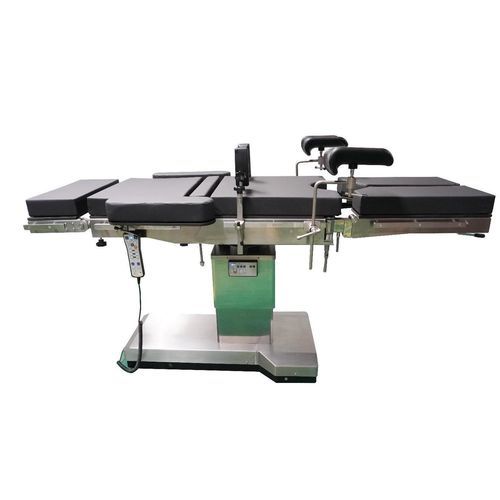

Universal operating table FY-503-D(II)radiologyurologyorthopedic
Add to favorites
Compare this product
Characteristics
- Applications
- universal, gynecological, orthopedic, urology, radiology
- Operation
- electric, hydraulic
- Features
- adjustable height, tilting, mobile, radiolucent, reclining
- Components
- with headrest, with sliding tabletop
- Material
- stainless steel
- Total length
210 cm
(82.7 in)- Total width
55 cm
(21.7 in)
Description
Features:
Technical specifications:
- Suitable for general, gynecology, obstetric, proctology, urology and orthopaedics operations.
- Radiolucent table top and 300 mm longitudinal movement facilitate X-ray examination and C-arm imaging of different body regions.
- Electro-hydraulic drive system for smooth and quiet adjustments.
- Height, back section, Trendelenburg, lateral tilt and longitudinal movement (300 mm) are controlled by the electro-hydraulic system.
- Head section: manual adjustment; leg section: air-spring assisted adjustment.
- Constructed in 304 stainless steel. Mobile T-shaped stainless steel base on castors with central brake.
- Functions include one-key 0 position, one-key flex/reflex, emergency stop switch, power indicator and storage battery indicator.
- Double controller system: hand remote and column-mounted controls.
Technical specifications:
- Model: FY-503-D(II)
- Table dimensions: 2100 × 550 mm
- Height adjustment: 700–1050 mm (electro-hydraulic)
- Trendelenburg: ±30° (electro-hydraulic)
- Lateral tilt: ±20° (electro-hydraulic)
- Back section range: +85° / -40° (electro-hydraulic)
- Head board: +45° / -90° (manual)
- Leg board: +30° / -90° (manual)
- Longitudinal movement: 300 mm (electro-hydraulic)
- Kidney elevator: 0–120 mm (manual)
- Flex/Reflex: 220° / 110°
- 0 position function
- Storage battery included
- Double controller: hand remote and column
- Material: 304 stainless steel, T-shape base with central brake
