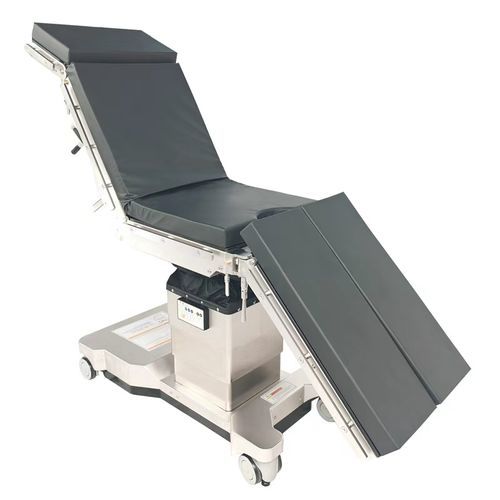

Universal operating table FY600Delectrichydraulicadjustable height
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric, hydraulic
- Features
- adjustable height, tilting, mobile, radiolucent, reclining
- Components
- with legrest, with headrest, with sliding tabletop
- Number of sections
- 1-section
- Power source
- 220V / 50Hz, 110V / 60Hz
- Material
- stainless steel
- Total length
209 cm
(82.3 in)- Total width
54 cm
(21.3 in)- Max supported weight
520 kg
(1,146.4 lb)
Description
Overview
Electric-hydraulic operating table FUYOUMED FY600D designed for a wide range of surgical procedures. It features head-to-toe interchange, 304 stainless steel construction and multiple control options for precise positioning.
Key features
Technical specifications
Controls and safety
Plates and adjustments
Options and accessories
Electric-hydraulic operating table FUYOUMED FY600D designed for a wide range of surgical procedures. It features head-to-toe interchange, 304 stainless steel construction and multiple control options for precise positioning.
Key features
- Electric-hydraulic central drive with four hydraulic jack columns
- Head-to-toe interchange function
- Frame and main body in 304 stainless steel
- Height adjustment 540–1040 mm (without mattress)
- Trendelenburg / reverse Trendelenburg: 30°; lateral tilt: 20°
- Longitudinal translation: 320 mm (optional 350 mm)
- Maximum load capacity 520 kg; Safe Working Load (SWL) 265 kg
- Mattress thickness 80 mm; interchangeable head/leg plates
- X-ray compatible area up to 1590 mm (optional radiolucent design)
Technical specifications
- Overall length: 2090 mm
- Overall width: 540 mm
- Main materials: 304 stainless steel (table top frame and base)
- Caster diameter: 4 × 100 mm with rotation and directional lock
- Backup battery: 24 V 15 AH
- Power supply: AC 110–220 V
- Packing dimensions: 140 × 73 × 115 cm
- Gross weight (including accessories): 350 kg
- Maximum radiolucent area: 1590 mm
Controls and safety
- Handheld controller and column-mounted controller included
- Optional wireless controllers (2.4" and 3.5") and foot switch
- Controller display: LCD option (2.4")
- Auto standby with automatic shutdown after 70 seconds
- Zero-position reset and position memory (5 presets)
- Flexion/reflexion buttons: 220° / 110°
- One-click safety reset; manual emergency drive optional
Plates and adjustments
- Head plate: gear and air-spring control; up/down angle model +60° to -90°
- Back plate: electric-hydraulic control, 1 section, +80° to -40°
- Kidney bridge: manual, 120 mm adjustment
- Leg plate: manual air-spring adjustment; angles 30° / -90° / 180°
Options and accessories
- 5th caster brake valve (optional)
- Dual-layer table top (optional)
- X-ray transparency and radiolucent designs (optional)
- Various controller and accessory configurations available on request
