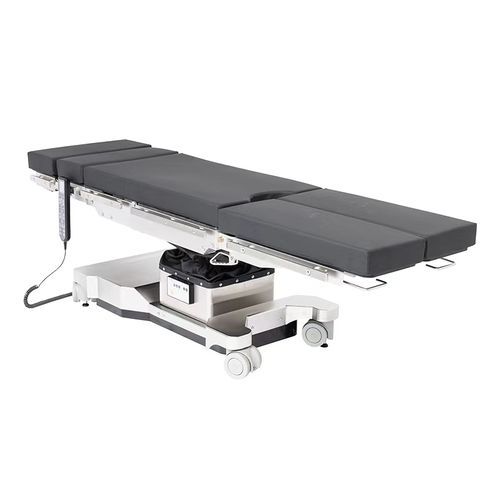

Universal operating table FY600Belectrichydraulicadjustable height
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric, hydraulic
- Features
- adjustable height, tilting, mobile, radiolucent
- Total length
216 cm
(85 in)- Total width
54 cm
(21.3 in)- Max supported weight
520 kg
(1,146.4 lb)
Description
Description
Technical specifications
Controls & options
Safety & additional features
- FUYOUMED FY600B electric-hydraulic operating table for general surgery with head-to-toe interchange function and interchangeable head/leg plates.
- 304 stainless steel construction for base, main body and tabletop frame; central electric-hydraulic brake and four hydraulic jack columns for stability.
- Height adjustment 540–1040 mm (without mattress); mattress thickness 80 mm; longitudinal translation 320 mm (optional 350 mm).
Technical specifications
- Brand: FUYOUMED
- Model: FY600B
- Base / Main body / Table top frame material: 304 stainless steel
- Height adjustment (without mattress): 540-1040 mm
- Overall length x width: 2160 x 540 mm
- Maximum load capacity: 520 KG
- Safe working load (SWL): 275 KG
- Maximum radiolucent area: 1590 mm
- Trendelenburg / Reverse Trendelenburg: 30°; Lateral tilt: 20°
- Longitudinal translation: 320 mm (optional 350 mm)
- Mattress thickness: 80 mm
- Controllers: Handheld (standard), Column-mounted (standard), Wireless controllers optional (2.4-inch / 3.5-inch)
- Backup battery: 24V 15AH
- Power supply: AC 110-220V
- Casters: 4 universal casters, diameter 100 mm
- Packing dimensions: 140 x 73 x 115 cm
- Gross weight: 355 kg (including accessories)
Controls & options
- Handheld and column-mounted controllers standard; wireless controllers (2.4-inch / 3.5-inch) optional; foot switch optional.
- Head plate control: gears and air springs; back plate control: electric-hydraulic; leg plate: manual air spring adjustment.
- Position memory (5 presets), zero-position reset button, flexion/reflexion buttons 220°/110°, auto standby with automatic shutdown after 70 seconds.
Safety & additional features
- Central electric-hydraulic brake, caster locks, one-click reset safety function, reverse/forward V positions, dual-layer tabletop optional, X-ray compatibility optional.
