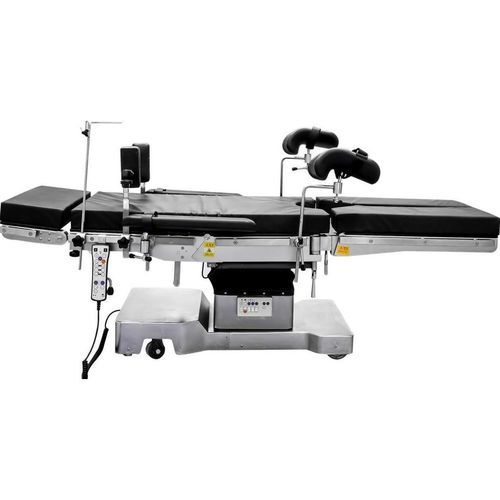

Neurosurgery operating table FY-503-D(I)radiologyurologyorthopedic
Add to favorites
Compare this product
Characteristics
- Applications
- gynecological, orthopedic, urology, neurosurgery, radiology
- Operation
- electric, hydraulic
- Features
- adjustable height, tilting, mobile, radiolucent, reclining
- Components
- with headrest, with sliding tabletop
- Material
- stainless steel
- Total length
210 cm
(82.7 in)- Total width
55 cm
(21.7 in)
Description
Overview:
The FY-503-D(I) electric hydraulic operating table is designed for general surgery, gynecology, obstetrics, proctology, urology and orthopaedics. The radiolucent table top and 350 mm longitudinal shift enable C-arm/X-ray imaging. Electro-hydraulic adjustments and a compact stainless steel mobile base support a wide range of surgical positions and intraoperative imaging.
Key features:
Technical specifications:
Controls and safety:
The FY-503-D(I) electric hydraulic operating table is designed for general surgery, gynecology, obstetrics, proctology, urology and orthopaedics. The radiolucent table top and 350 mm longitudinal shift enable C-arm/X-ray imaging. Electro-hydraulic adjustments and a compact stainless steel mobile base support a wide range of surgical positions and intraoperative imaging.
Key features:
- Multi-specialty use: general, gynecology, obstetrics, proctology, urology and orthopaedics; ultra-low position suitable for neurosurgery.
- Radiolucent table top compatible with C-arm/X-ray; 350 mm longitudinal movement for imaging access.
- Electro-hydraulic drive for smooth, quiet adjustment of height, back section, Trendelenburg and lateral tilt.
- Head board manual adjustment; leg section with air-spring (gas spring) adjustment.
- Built-in kidney elevator (manual) 0–120 mm; Flex/Reflex range 220° / 110°; one-key 0 position and flex/reflex functions.
- Constructed in premium 304 stainless steel; mobile base on castors with central brake.
Technical specifications:
- Dimensions: 2100 × 550 mm
- Height adjustment (electro-hydraulic): 550–1050 mm
- Trendelenburg (electro-hydraulic): ±30°
- Lateral tilt (electro-hydraulic): ±20°
- Back section (electro-hydraulic): +85° / -40°
- Head board (manual): +45° / -90°
- Leg board (manual): +30° / -90°
- Table top longitudinal movement (electro-hydraulic): 350 mm
- Built-in kidney elevator (manual): 0–120 mm
- Flex/Reflex: 220° / 110°
- One-key 0 position
- Storage battery (backup)
- Double controller: hand remote and column-mounted controller
- Material: full premium 304 stainless steel; mobile stainless steel base on castors with central brake
Controls and safety:
- Double control system: handheld remote and column controller for flexible operation.
- Emergency stop switch and power indicator for immediate response and monitoring.
- Storage battery for backup operations and indicators for battery status.
- One-key safety functions: 0 position and flex/reflex quick setting.
- Silent electro-hydraulic operation and centrally braked castors for safe positioning.
