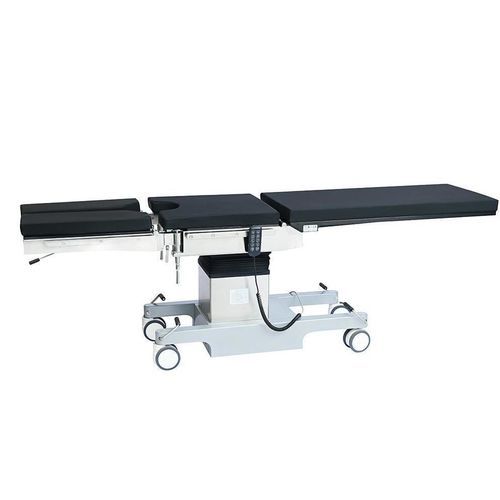

Mobile angiography table FY-503-C(I)
height-adjustabletilting

Mobile angiography table - FY-503-C(I) - Jiangsu Fuyou Medical - height-adjustable / tilting

Mobile angiography table - FY-503-C(I) - Jiangsu Fuyou Medical - height-adjustable / tilting

Add to favorites

Compare this product

Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Installation: mobile
Options: height-adjustable, tilting

Description

Features

Jiechang motors for smooth, low-noise operation.
Motorized height adjustment, longitudinal travel and lateral movement.
Back section length 1160 mm; metal-free design in the back section.
Back section: 25 mm carbon-fiber panel; sitting and leg boards: 10 mm carbon-fiber panels suitable for high-definition fluoroscopy.
Carbon-fiber tabletop provides unrestricted radiolucency for pelvic, cardiovascular, orthopedic and traumatology procedures.
125 mm castors for transport and positioning.
All sections fitted with detachable mattress for easy cleaning.

Technical specifications

Model: FY-503-C(I)
Overall dimensions: 2430 × 520 mm
Height adjustment (electric): 720–920 mm
Trendelenburg range (electric): ±25°
Lateral tilt range (electric): ±20°
Back section adjustment (electric): +75° / -30°
Leg board adjustment (manual): +30° / -90°
Back section length: 1160 mm (metal-free)
Back section material: 25 mm carbon-fiber
Sitting board & leg board material: 10 mm carbon-fiber panels
Castors: 125 mm
Motors: Jiechang
Mattress: detachable for easy cleaning

Applications

Designed for DSA and ERCP procedures; compatible with angiography and fluoroscopy-guided interventions.
Suitable for cardiology, vascular interventions, orthopedics, pelvic surgery and traumatology.

Maintenance & mobility

Detachable mattress and removable sections enable cleaning and disinfection.
125 mm castors facilitate repositioning; brakes for secure locking.
Motorized longitudinal and lateral movements reduce manual handling during patient positioning.

Catalogs

No catalogs are available for this product.

See all of Jiangsu Fuyou Medical‘s catalogs

Go to the Jiangsu Fuyou Medical website for more information

Other Jiangsu Fuyou Medical products

Operating Table (Electric)

universal operating table 1

universal operating table FY-503-E3

radiologyurologyorthopedic

universal operating table 1

universal operating table FY-507-E

radiologyurologyorthopedic

universal operating table 1

universal operating table FY-505-D(IV)

radiologyurologyorthopedic

universal operating table 1

universal operating table FY-504-D(III)

electrichydraulictilting

universal operating table 1

universal operating table FY-503-D(II)

radiologyurologyorthopedic

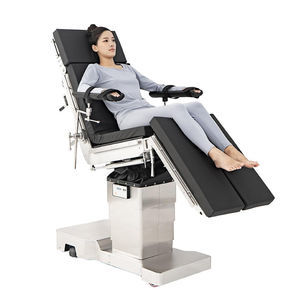

neurosurgery operating table 1
