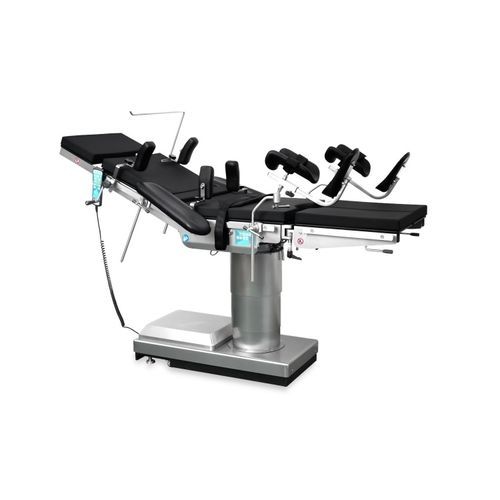

Neurosurgery operating table A501

radiologyurologyENT

Overview
The A501 electric-hydraulic operating table is a surgical platform designed for multidisciplinary operating room workflows with intraoperative imaging. It provides electro-hydraulic positioning, a radiolucent tabletop, dual independent control systems, integrated kidney bridge and emergency backup power for critical functions.

Applications

• Thoracic‑abdominal surgery
• Neurosurgery
• ENT surgery
• Obstetrics & gynecology
• Urology
• Orthopedics and trauma
• Image-guided procedures (C‑arm/fluoroscopy)

Key Features

• Electro-hydraulic positioning with height adjustment, tilt and articulation
• Dual independent control systems: hand controller and side controller for redundancy
• 180° tabletop horizontal rotation with built-in emergency backup power
• 320 mm longitudinal (horizontal) tabletop sliding for intraoperative positioning and imaging access
• Integrated kidney bridge (localized elevation) for urology and abdominal procedures
• 304 stainless steel base cover, column cover, side panels and rails for corrosion resistance and easier cleaning
• Electrically controlled casters for mobility and locking
• Emergency stop switch to halt table movement immediately
• Removable stainless steel covers for maintenance and inspection
• 5 cm memory foam mattress with PU leather upholstery (anti-yellowing, mold-proof)

Technical parameters (table)
Length/Width: 2125 × 550 mm ± 10 mm
Height elevating/lowering: 630–980 mm ± 10 mm
Forward tilt / Backward tilt: 20° ± 3° / 15° ± 3°
Left tilt / Right tilt: 15° ± 3° / 15° ± 3°
Backrest (Up/Down): 85° ± 3° / 35° ± 3°
Head section (Up/Down): 55° ± 3° / 90° ± 3°
Leg section (Up/Down): 15° ± 3° / 90° ± 3°
Leg section outward: 90° ± 3°
Kidney bridge: 120 mm ± 10 mm
Horizontal sliding: 320 mm ± 10 mm
Tabletop horizontal rotation: 180° ± 3°

Standard configuration / Accessories (examples)

• Anesthesia screen — 1 unit
• Shoulder supports — 1 pair
• Arm rests — 1 pair
• Lumbar supports — 1 pair
• Leg supports — 1 pair

Technical specifications

• Model: A501
• Tabletop dimensions: 2125 × 550 mm ± 10 mm
• Height range: 630–980 mm ± 10 mm
• Longitudinal sliding: 320 mm ± 10 mm
• Tabletop rotation: 180° ± 3°
• Kidney bridge travel: 120 mm ± 10 mm
• Tilts: forward/back 20°/15° ± tolerances; left/right 15°/15° ± tolerances
• Construction: 304 stainless steel covers and rails
• Mattress: 5 cm memory foam with PU leather upholstery
• Controls: dual independent systems (hand controller + side controller)
• Safety: emergency stop; built-in emergency power/UPS for essential functions
• Mobility: electrically controlled casters
