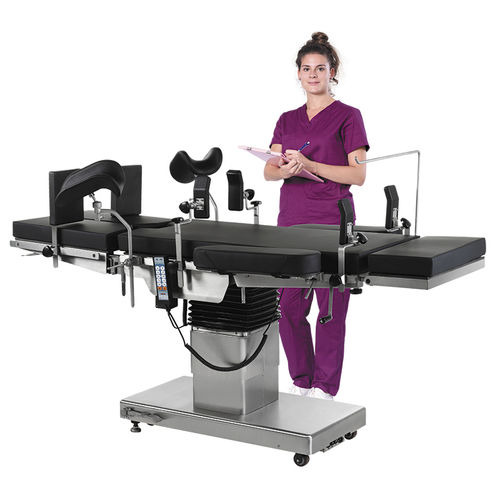

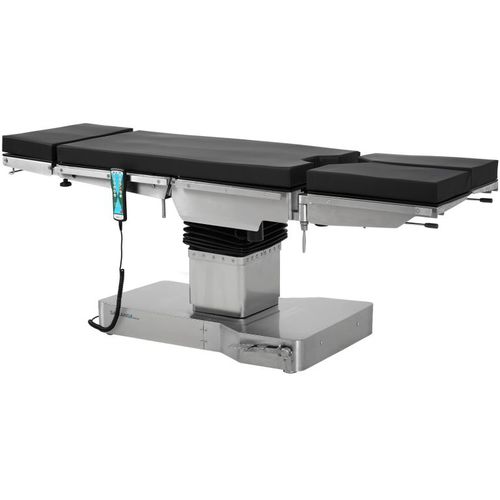

Universal operating table A100-4

ENTneurosurgeryendoscopy

Product overview
The A100-4 electric operating table (SKL-A) is a multi-purpose surgical table with multi-position adjustment, 300 mm longitudinal sliding, a manual kidney bridge and C-arm compatibility. It is designed for general surgery, orthopedics, urology, gynecology and other multidisciplinary surgical specialties to support imaging-assisted and routine OR workflows.

Key features

• Adjustable head plate with gas-spring assistance for stable, flexible patient positioning
• Gas-spring assisted leg plate enabling multi-position and outward rotation for lower-limb procedures
• 300 mm longitudinal sliding to optimize C-arm imaging and intraoperative access
• Concealed motor cable layout for a clean under-table area and improved equipment access
• Hand controller with plug-and-play connection, emergency stop and battery level display
• On-board battery backup to maintain basic table functions during temporary power interruptions
• Manual kidney bridge for localized elevation in urology and abdominal procedures
• Easy-clean mattress with high-frequency sealing and wide Velcro for secure placement and fast turnover

Function
Head plate for flexible surgical positioning
Adjustable head section supports multiple head positions required in routine OR procedures. Gas-spring assistance improves adjustment stability and ergonomics for clinical teams.
Leg plate for multi-position procedures
Leg section provides flexible lower-limb positioning and outward rotation to accommodate general, urology and gynecology workflows.
Clean under-table layout
Concealed motor cable design reduces under-table obstruction and supports C-arm access and equipment movement around the table.
Easy control for daily OR operation
Hand controller offers intuitive adjustment with plug-and-play connectivity, emergency stop and battery indicator for straightforward daily use and basic troubleshooting.
Easy-clean mattress
High-frequency heat-sealed mattress with wide Velcro coverage ensures stable placement, withstands routine cleaning and accelerates OR turnover.
Controller storage
Hand controller can be placed on the headboard area when not in use to keep the surgical field organized.
Battery backup for OR continuity
Integrated battery backup maintains essential table availability during short power interruptions to support reliable OR workflow.
Kidney bridge for specialty procedures
Manual kidney bridge provides localized elevation for urology and abdominal procedures requiring targeted body elevation.
Anesthesia screen frame
Stainless steel anesthesia screen frame supports positioning of anesthesia drapes and separation of the patient head area.
Adjustable shoulder support
Polyurethane shoulder supports help stabilize the patient in different surgical positions.
Body and arm supports
Adjustable body support and widened polyurethane arm rests with straps enhance patient stability and secure positioning during procedures.

Technical parameters
Length/Width: 2080 × 550 mm ± 10 mm
Height elevating/lowering: 700–1000 mm ± 10 mm
Forward tilt/backward tilt: 24° ± 3° / 24° ± 3°
Left tilt/right tilt: 23° ± 3° / 23° ± 3°
Backrest (up/down): 80° ± 3° / 20° ± 3°
Head section (up/down): 50° ± 3° / 90° ± 3°
Leg section (up/down): 20° ± 3° / 90° ± 3°
Leg section outward: 90° ± 3°
Kidney bridge: 140 mm ± 5 mm
Horizontal sliding: 300 mm ± 5 mm

Technical configuration (standard accessories & quantities)

• Anesthesia screen: 1 unit
• Shoulder supports: 1 pair
• Arm rests (with straps): 1 pair
• Lumbar supports: 1 pair
• Leg supports (with straps): 1 pair
• Foot plates: 1 pair

Applications

• General surgery
• Orthopedics
• Urology
• Gynecology
• Imaging-assisted procedures with C-arm
