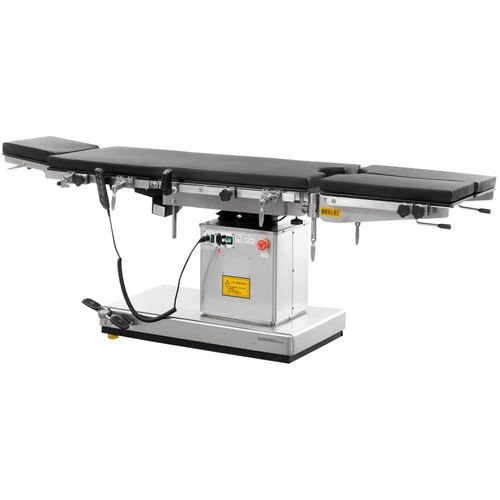

Ophthalmic operating table A2000
gynecologicaluniversalmaxillofacial surgery

ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
ophthalmic operating table
Add to favorites
Compare this product


Characteristics

Applications
ophthalmic, gynecological, universal, maxillofacial surgery, orthopedic, ENT, neurosurgery, urological, emergency, laparoscopic, dermatology, for maxillary surgery, cardiovascular, cardiology, radiology, endoscopy
Operation
electric
Features
height-adjustable, Trendelenburg, reverse Trendelenburg, ergonomic
Options
with remote control
Other characteristics
stainless steel, autoclavable
Height

Max.: 930 mm (36.6 in)

Min.: 680 mm (26.8 in)

Width

480 mm (18.9 in)

Length

2,100 mm (82.7 in)

Backrest inclination

15 °, 70 °

Legrest inclination

45 °, 90 °

Maximum load

150 kg (330.69 lb)

Description

Design Philosophy of A2000 A2000 Surgical Table expands the high-quality, durable product portfolio with even more proven reliability features. Saikang Medical incorporates new concepts born out of comprehensive research;collaboration with our clinical partners and extensive field testing. * Electromechanical operation is simple and reliable * Virtually indestructible one piece, solid stainless steel base * High-quality components throughout * Impenetrable, robotic laser welded Technical specification: - - - * External size (LxWxH): 2100x480x(680-930)mm * Reverse trendelenburg: 0-25° * Trendelenburg: 0-25° * Lateral tilt left/right: 0-15° * Head plate up/down: 45°/90° * Back plate up/down: 70°/15° * Leg plate up/down: 45°/90° * Leg plate outwards: 90° * Kidney bridge elevation: 0-100mm * Horizontal sliding: 0-350mm * Safe working load: 150kg Technical accessories: * Bed frame: 1pc * Mattress: 1set * Anesthesia screen frame: 1pc * Shoulder holder: 2pcs * Arm holder: 2pcs * Leg support: 2pcs * Foot support: 2pcs * Hand controller: 1pc * Sliding block: 10pcs * Spanner: 4pcs * The table is provided with an emergency stop switch on the base column, help to stop the operating table running in case of emergency situation, emsure the safety of operation. * Manual kidney bridge, more convenience. * Battery could support about 50-80 complete operation cycles. Working time could be last for one week according to useage and help to keep the operating table running in the event of power failure. * Leg plate with imported gas spring for easy control.
