Gynecological operating table A202

radiologyurologyorthopedic

Overview

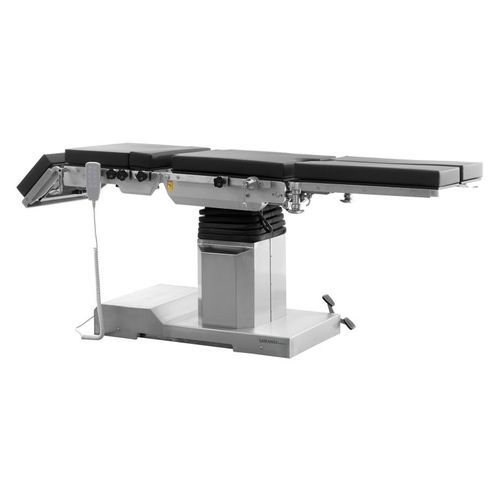

The A202 electro-hydraulic operating table is an imaging-compatible surgical table for multidisciplinary operating rooms. It provides electro-hydraulic positioning, 300 mm longitudinal sliding for C‑arm access, an 80 mm kidney bridge, removable memory mattress, battery backup for temporary power interruptions, and a radiolucent phenolic resin tabletop suitable for X‑ray and C‑arm procedures. Intended use includes orthopedic, urological, gynecological and image-guided surgeries.

Procurement highlights
The chassis cover uses Ni‑Cr stainless alloy steel with seamless robotic welding for corrosion and disinfection resistance. The removable memory mattress offers good rebound, anti‑static and antimicrobial properties for routine OR turnover. Electro‑hydraulic control ensures smooth, stable adjustments via a hand controller; a mechanical brake on the base enables fixed or mobile operation.

Function & key features

• Electro‑hydraulic control system for smooth, stable table adjustments; main functions via hand controller.
• High‑strength radiolucent phenolic resin tabletop compatible with X‑ray/C‑arm imaging.
• 300 mm longitudinal (horizontal) sliding to facilitate imaging access.
• Kidney bridge adjustable by hand wheel; separate mattress section for localized elevation (80 mm travel).
• Mechanical brake on base for reliable positioning (fixed or mobile operation).
• Removable memory mattress with anti‑static and antimicrobial design for cleaning and turnover.
• Battery backup supporting approximately 50–80 complete operation cycles (usage dependent).
• Leg plate with high‑strength gear structure for manual folding; optional leg crutches, armrests and shoulder supports for specialized procedures.
• Anesthesia frame and shoulder supports available as standard accessory options.

Complete operating room equipment coordination
The A202 can serve as the central surgical platform in an imaging‑assisted OR package and is compatible with surgical lighting, medical pendants, patient monitors, suction and anesthesia equipment, instrument trolleys and stainless‑steel OR support products. Quantities, electrical specifications, medical gas interfaces, accessories and project documentation can be arranged to meet procurement requirements.

Technical parameters
Length/Width: 2020 × 500 mm ± 10 mm
Height elevating/lowering: 750–1050 mm ± 10 mm
Forward tilt / Backward tilt: 22° ± 3° / 25° ± 3°
Left tilt / Right tilt: 20° ± 3° / 20° ± 3°
Backrest (Up/Down): 70° ± 3° / 40° ± 3°
Head section (Up/Down): 42° ± 3° / 90° ± 3°
Leg section downward: 90° ± 3°
Leg section outward: 90° ± 3°
Kidney bridge: 80 mm ± 10 mm
Horizontal sliding: 300 mm ± 10 mm

Standard technical configuration (examples)

• Anesthesia screen: 1 unit
• Shoulder supports: 1 pair
• Arm rests: 1 pair
• Lumbar supports: 1 pair
• Leg supports: 1 pair

Applications
The A202 is suitable for routine and specialty surgical workflows including orthopedics, urology, gynecology and imaging‑assisted procedures requiring C‑arm/X‑ray compatibility and flexible patient positioning.

Technical characteristics / specifications

• Model: A202
• Tabletop size: 2020 × 500 mm ± 10 mm
• Height range: 750–1050 mm ± 10 mm
• Longitudinal sliding: 300 mm ± 10 mm
• Kidney bridge travel: 80 mm ± 10 mm
• Forward / Backward tilt: 22° ± 3° / 25° ± 3°
• Left / Right tilt: 20° ± 3° / 20° ± 3°
• Backrest angle: up to 70° ± 3° ; down to 40° ± 3°
• Head section angle: up to 42° ± 3° ; up to 90° ± 3°
• Leg section: downward/outward up to 90° ± 3°
• Construction: Ni‑Cr stainless alloy steel chassis cover with seamless robotic welding
• Tabletop: radiolucent phenolic resin compatible with imaging
• Control: electro‑hydraulic with hand controller; mechanical brake on base
• Accessories: removable memory mattress, armrests, shoulder supports, leg supports/crutches, anesthesia frame
• Battery backup: approx. 50–80 operation cycles (usage dependent)
